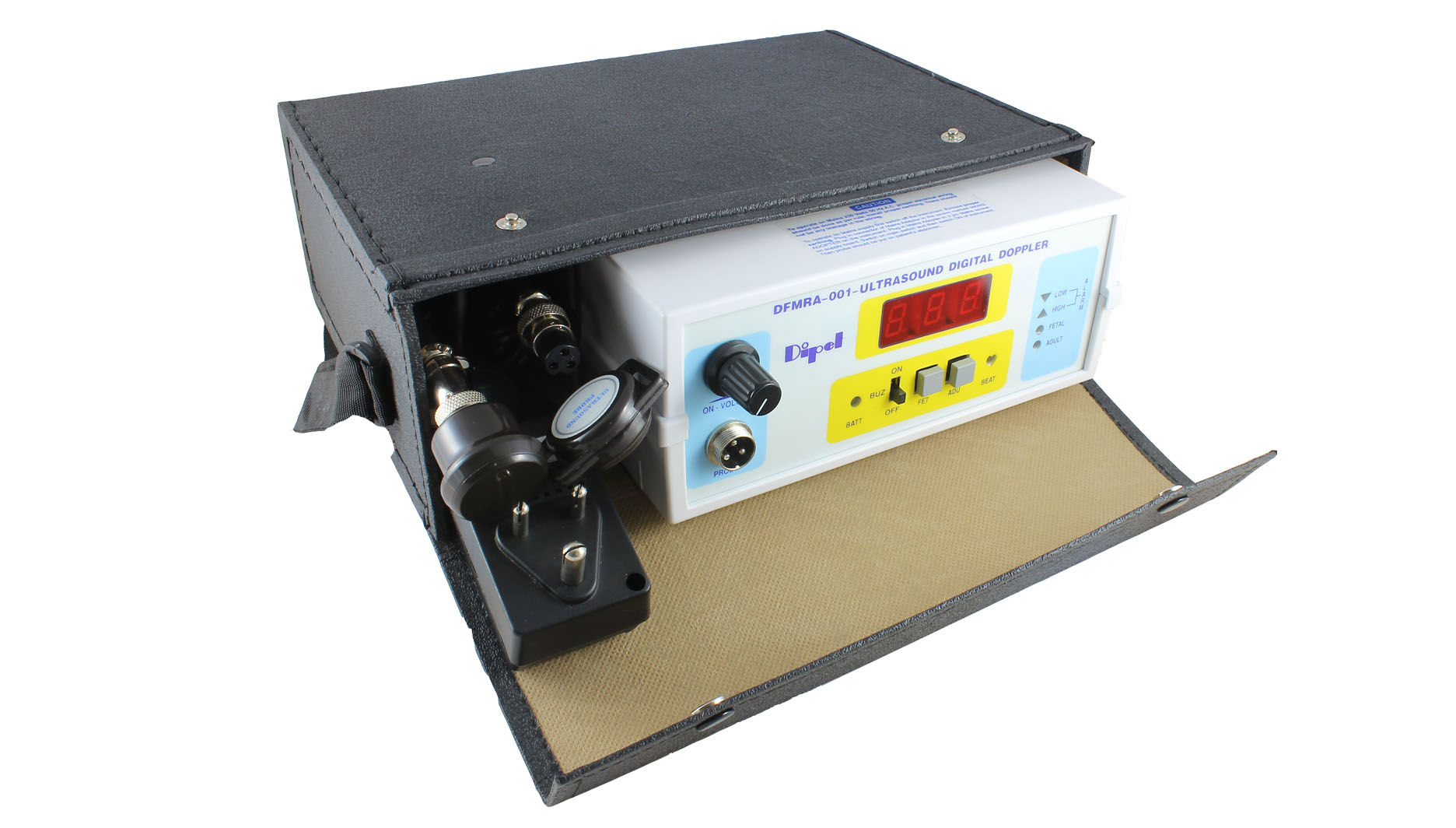

Ultrasound Digital Doppler DFMRA-001

• DFMRA-001 comes with 7-segment Digital display showing Fetal Heart Rate (FHR). It has high-low alarm for monitoring Fetal health. Inbuilt speakers have quality sound output.
• This tabletop model is housed in moulded ABS cabinet. Its design is durable, reliable, user friendly and safe to use. DFMRA-001 is widely used in many Hospitals all over India and abroad, and is appreciated by many Doctors and Gynecologists.

Features

• Solid state-portable
• Microcontroller based circuitry
• Ultrasound frequency 2 MHz
• Digital display of Beats Per Minute of Fetal and Adults heart beats
• 3-Digit LED
• Range-60 B.P.M. to 250 BPM
• Low Alarm - 100 BPM - High Alarm - 160 BPM
• Earphone & Tape Recording facility available.

Technical

• Frequency: 2 MHz
• Intensity: <10 mW/sq.cm
• Heart Rate: 60–220 BPM
• Input: 230V, 50 Hz
• Mains & Battery operated: (6 Dry Cells Eveready 1050 type)

Physical

• Housed in moulded ABS cabinet
• Depth: 205mm
• Width: 216mm
• Height: 90mm
• Weight: 2 KG

Obstetrical Applications

• Digital Display of FHR.
• Detection of foetal heart at 10 to 12 weeks.
• Localization of Placenta.
• Detects Foetal Distress & Intrauterine death.
• Determine multiple pregnancies.
