Coating Thickness Gauge – FERRO-DERM
Product Code: FERRO-DERM
Description
Specifications
Applications
Description

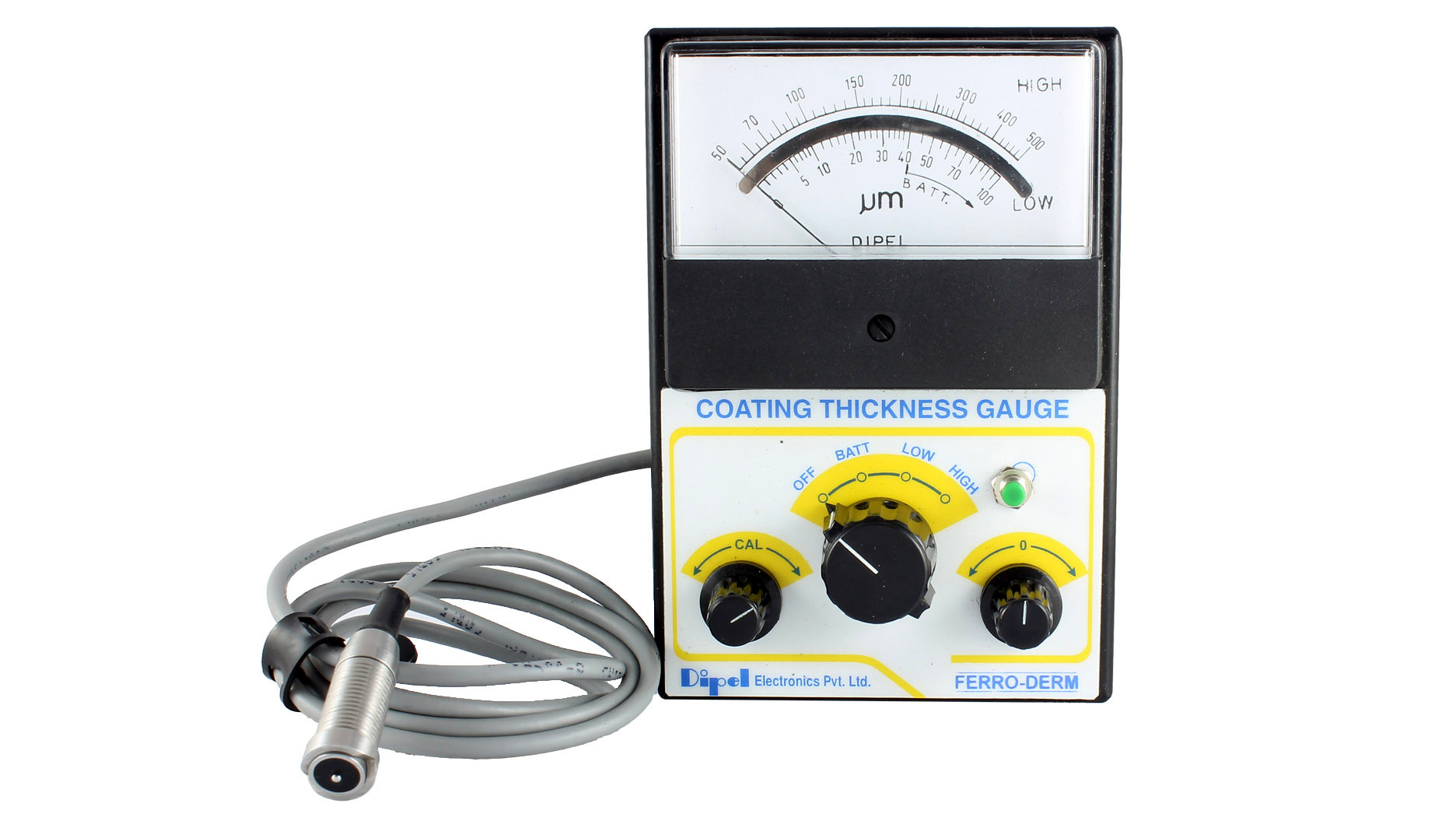

The Dipel FerroDerm is an instrument for making accurate non-destructive measurement of Non-magnetic Coating on Magnetic Metals.
It is light in weight, compact and portable. It consumes less power since it incorporates integrated circuits and solid state devices.
Features
Measures thickness from one side
Eliminates human error
Shows instantaneous reading of the measured thickness
Can be used by unskilled operators
Highly reliable due to modern solid state technology
Light, Compact, Rugged
Specifications
Low Range:
0 to 100 Micron in Steel (can measure up to 99.9mm)
High Range:
50 to 500 Micron
Measuring Accuracy:
± 10%
Power Supply:
9V DC (1 battery Eveready 216type)
Dimension:
170mm x 115mm x 65mm
Weight:
900 gms
Applications
Capable of measuring Non-magnetic coating film, plating etc. on magnetic metals
Plating - Gold, Copper, Tin, Chromium, Lead etc.
Lining - Resin, Rubber, Glass etc.
Coating - Paint, Resinous, Metal Coating
Film - Metal, Resin, Rubber, Paper of any other film of non-magnetic material can be measured when placed on steel base metal
Accessories

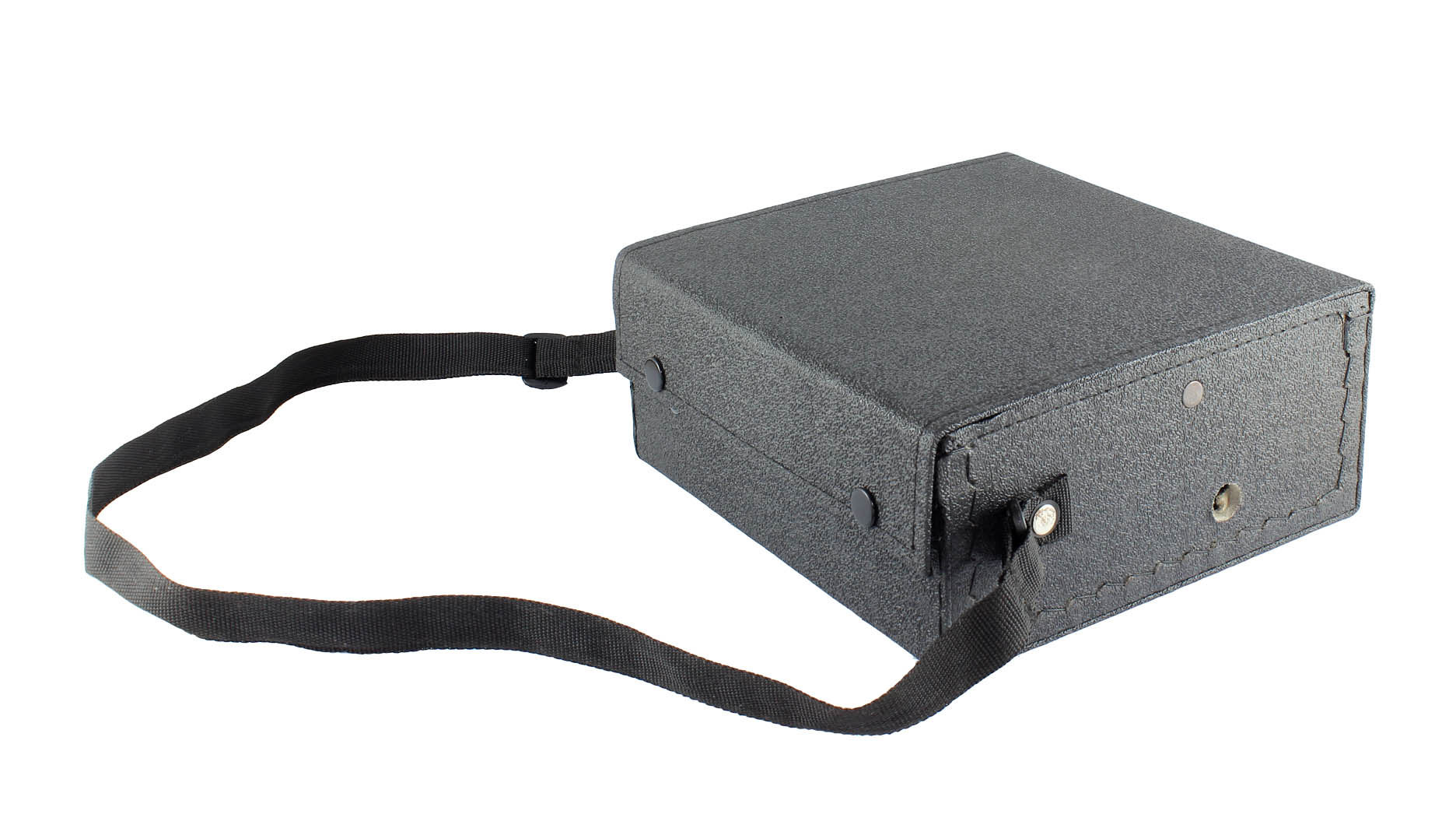

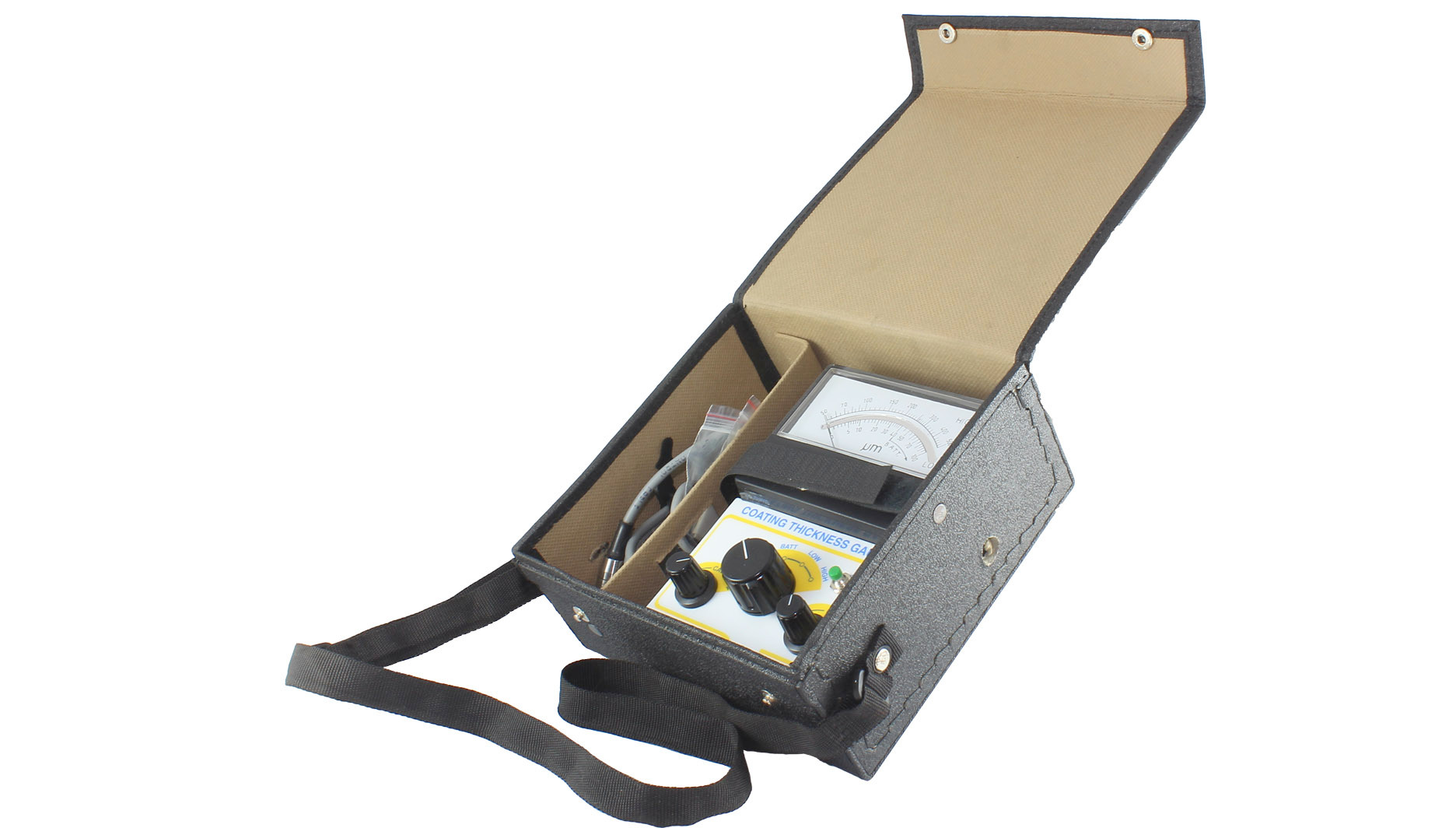

Carrying Case

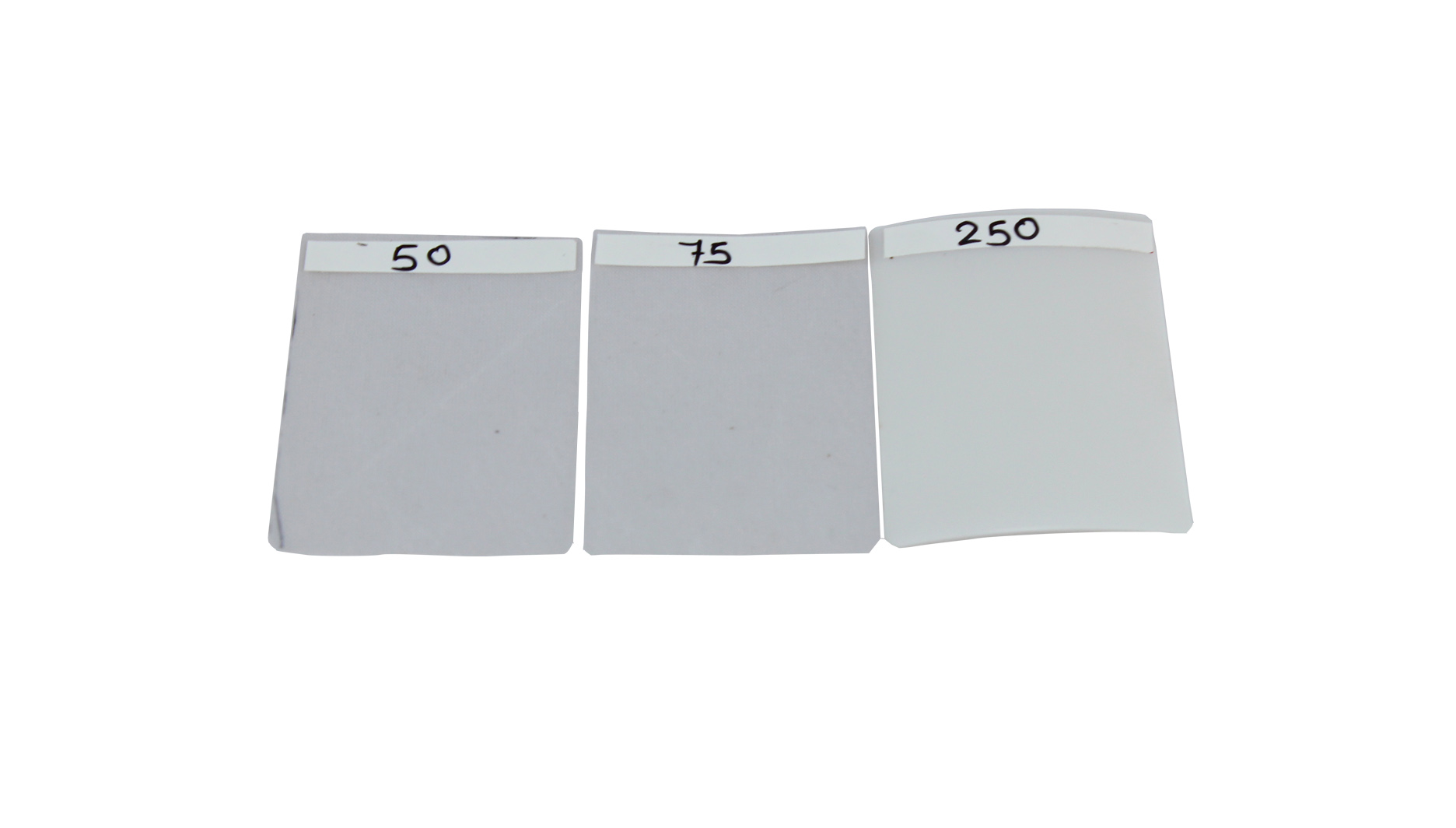

Film Set
Steel Base Plate (40mm x 27mm x 2mm)

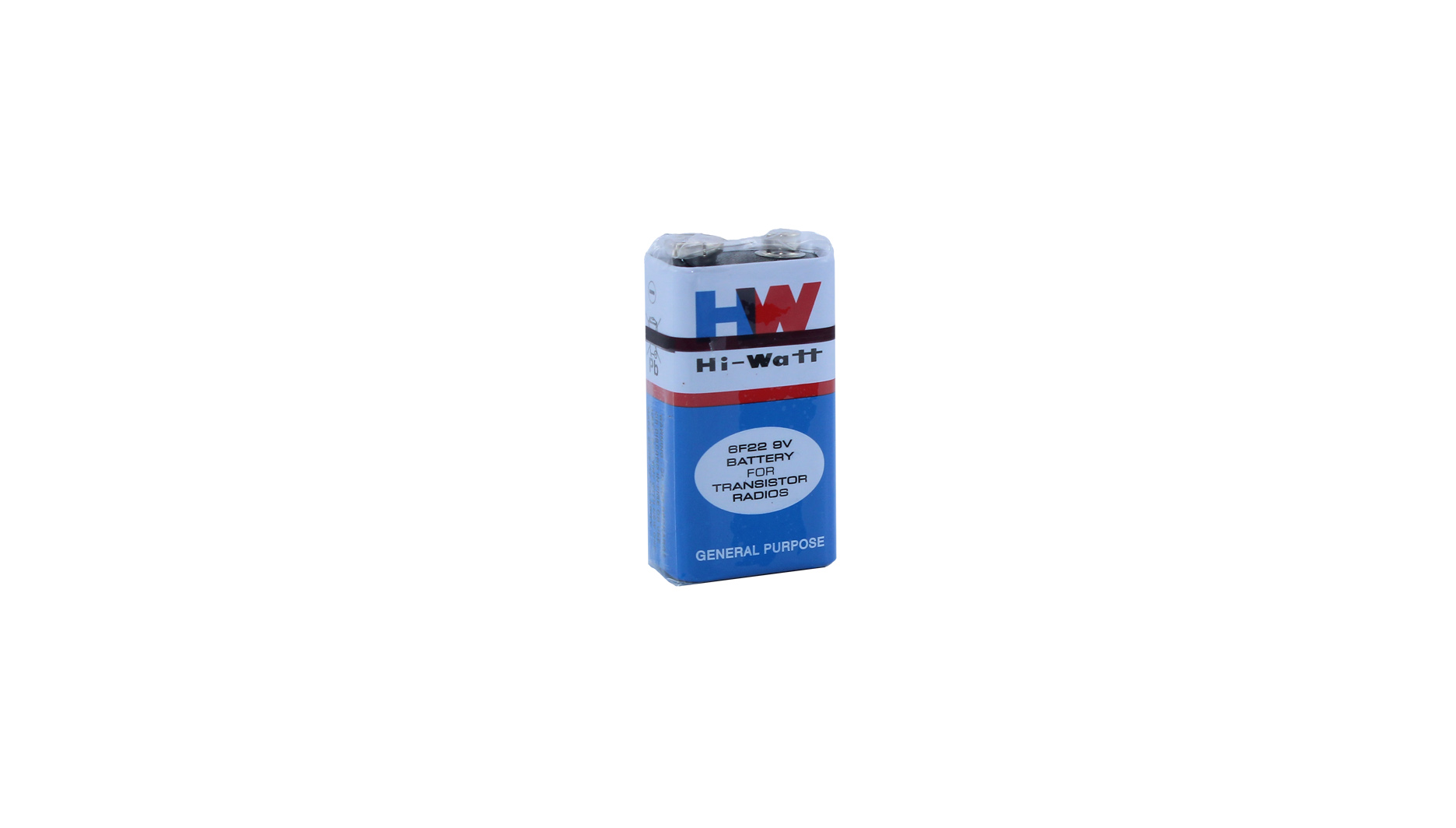

Battery
