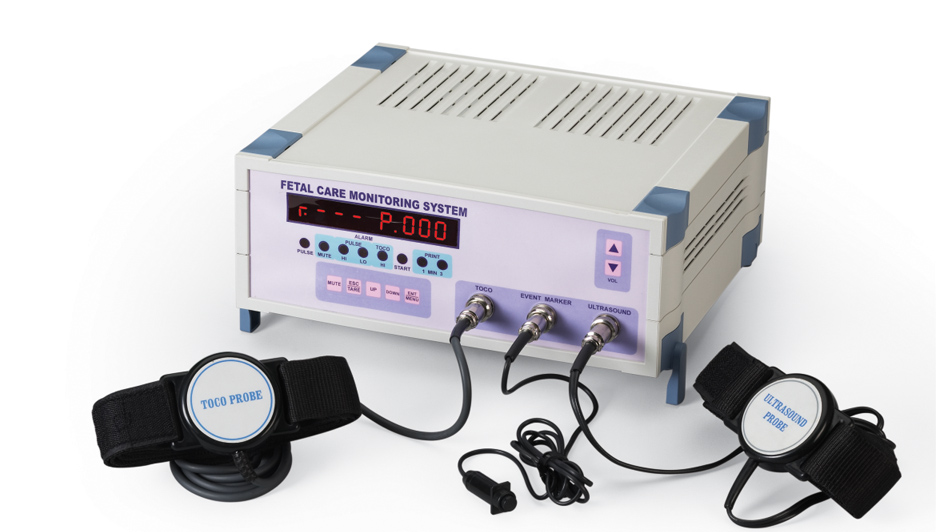

Fetal Care Monitoring System NST-01

Product Code: NST-01

  • It is Continuous Fetal Monitoring Instrument with printer output for recording FHR (Fetal Heart Rate) and TOCO on planer paper. It comes with Labor Pain Marker. This instrument is designed to have good quality and reliability to satisfy Gynecologists at reasonable price.


  • Trendy design
  • Multi crystal wide-beam transducer
  • Separate LED display for FHR and TOCO activity
  • Alarms for FHR and TOCO activity
  • Recording on ordinary paper using dot matrix paper
  • Fast printing option from memory for second copy
  • Optional computer software to display graph on PC using serial port


  • Doppler with continuous autocorrelation processing
  • Frequency: 2 MHz
  • Intensity: <10 mW/sq.cm
  • Heart Rate: 60–220 BPM
  • LED Display FHR & UA Value
  • Scaling 20 BMP/cm
  • Range 60-220 BPM
  • Resolution 1 BPM
  • Input 230 V, 50Hz


  • Width: 250mm
  • Height: 90mm
  • Depth: 235mm (With Knob)
  • Weight: 2.7 Kg

Obstetrical Applications

  • Detection of Early Pregnancy & Multiple Pregnancy.
  • Detects fetal heart rate at 10-12 weeks.
  • Routine Monitoring of Fetal Health.
  • Localization of Placenta.
  • Under Possibilities of Missed Abortion.
  • Diagnostic Evaluation of Pregnancy.
  • Precautionary Check-ups.
  • Evaluates Pregnancy Vs Abdominal Masses.

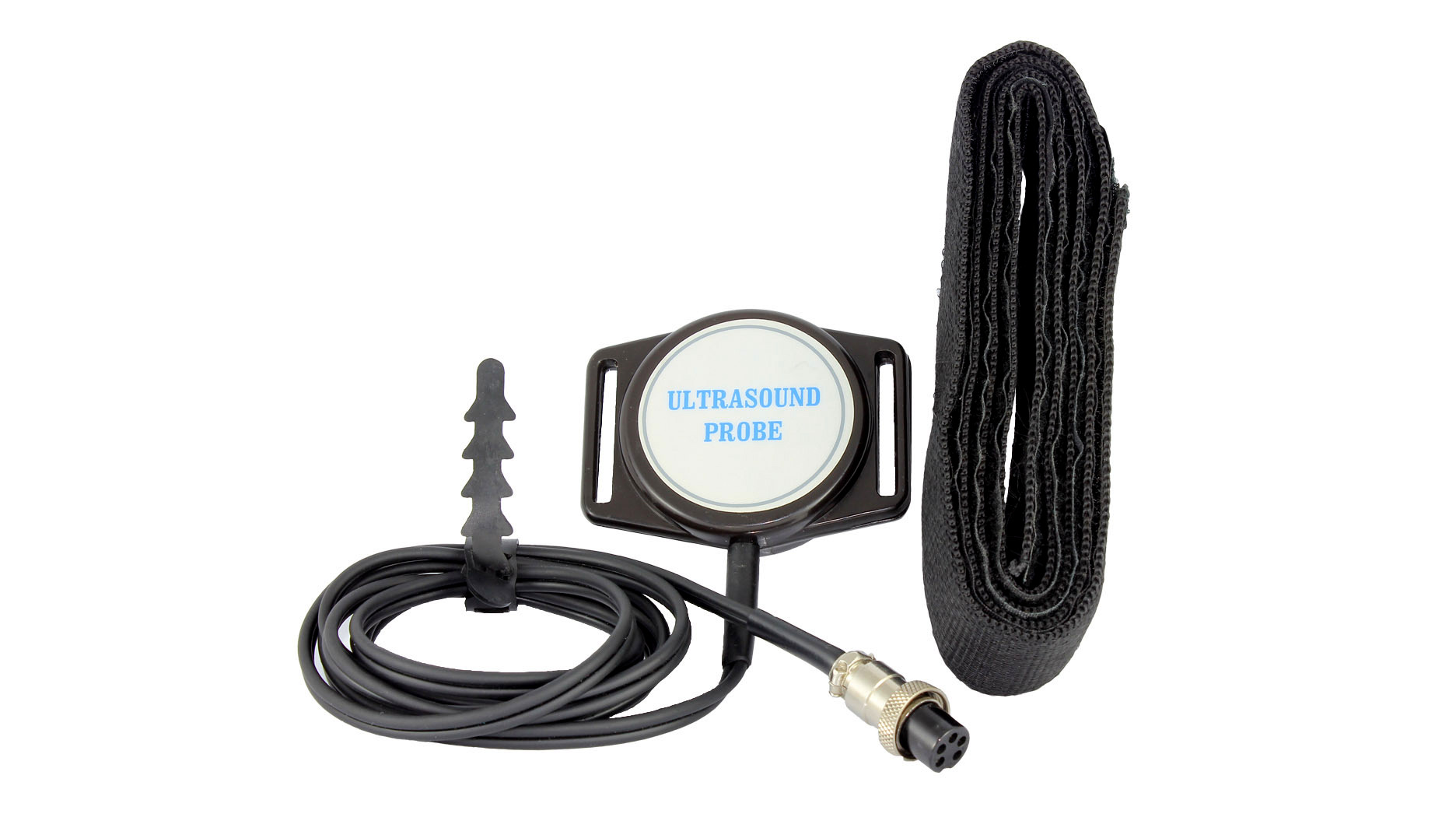

FHR Probe with Belt

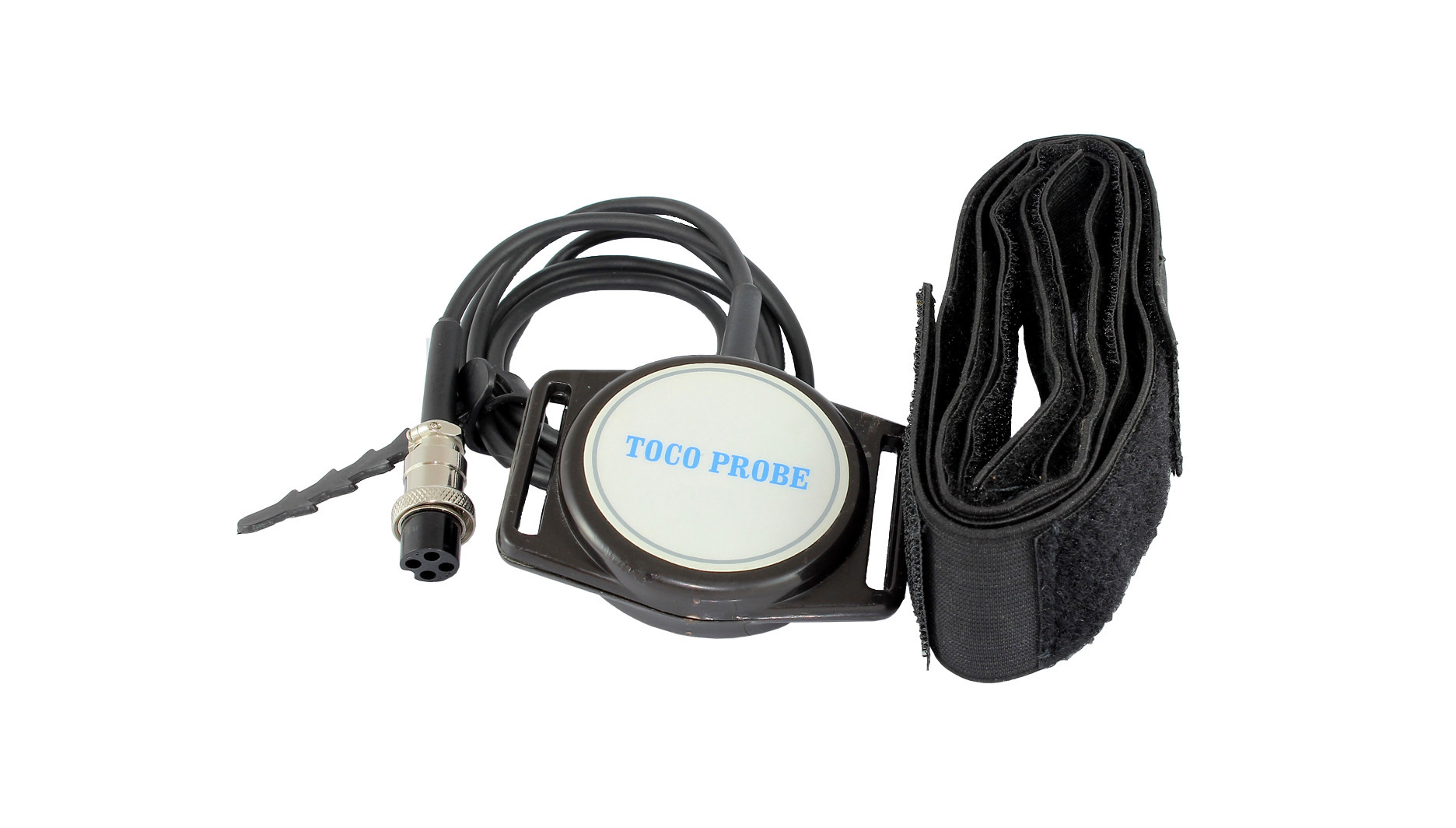

TOCO Probe with Belt

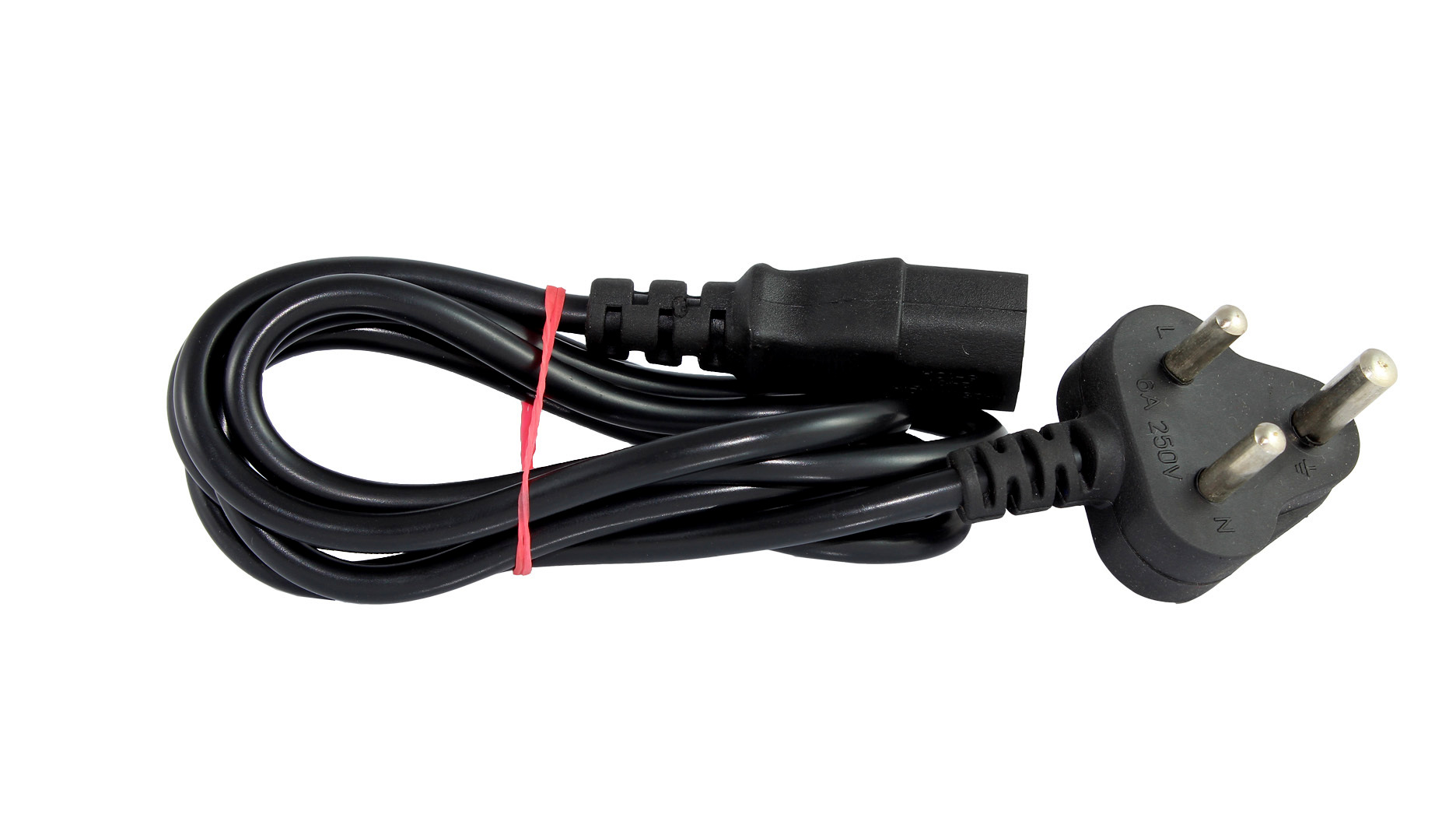

Mains Cable

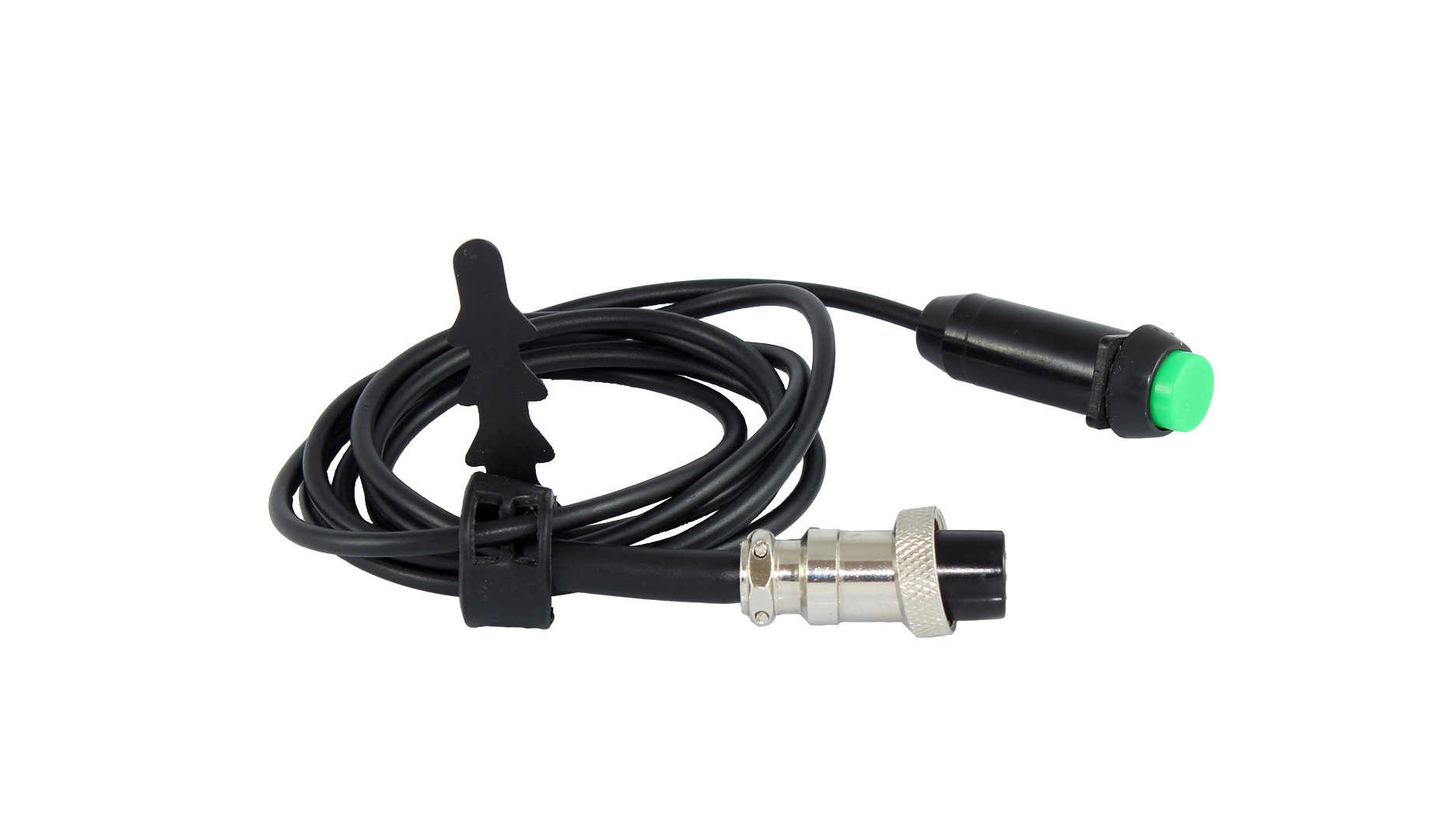

Marker With Cable

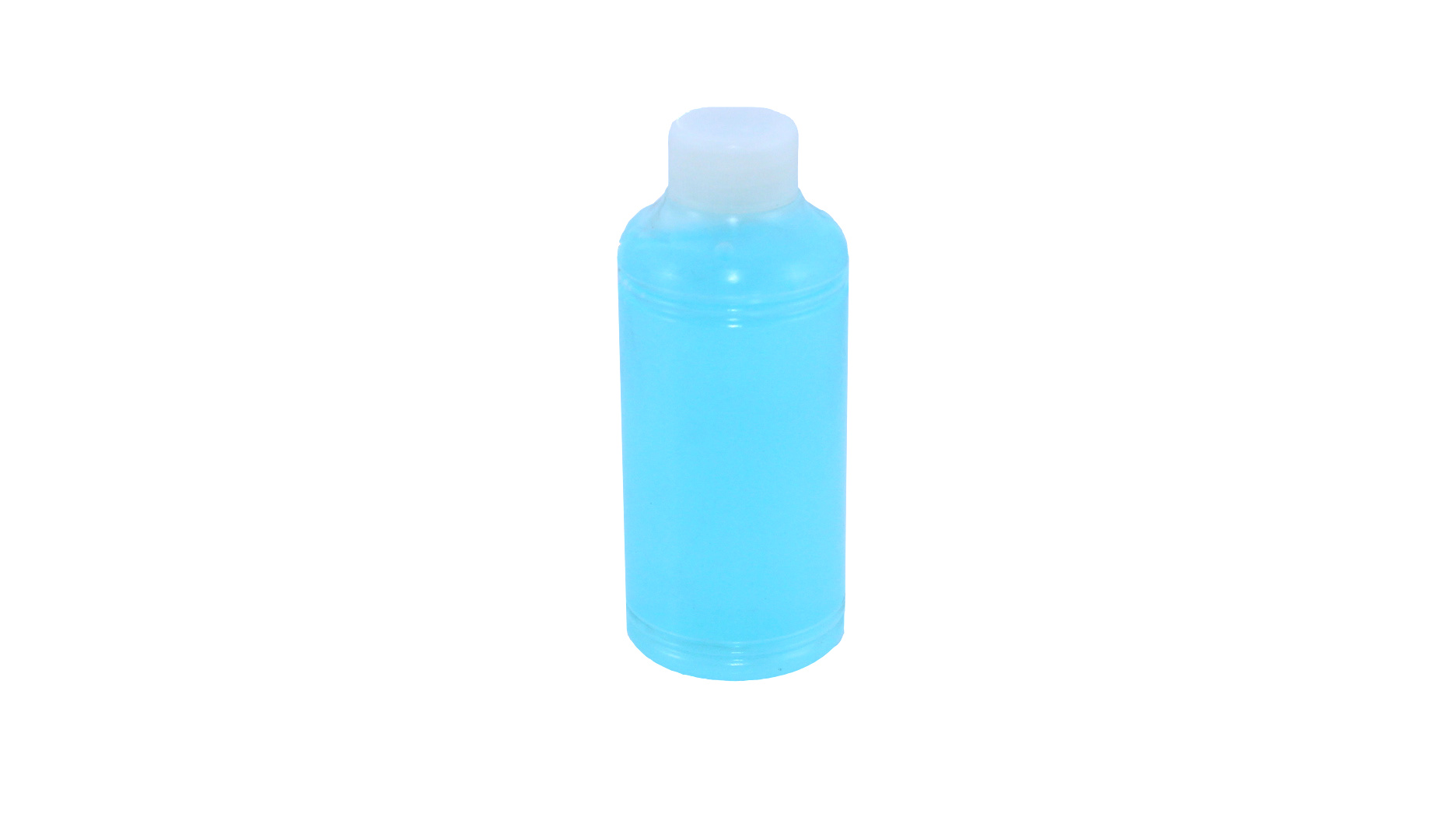

Jelly Bottle
Instruction Manual
