Ultrasound Doppler DFM-051

Product Code: DFM 051

  • Ultrasound Fetal Doppler is used for detection of Fetal Heart Rate (FHR) after 12 weeks of pregnancy. Its output is in the audio form i.e. Heart Beats are heard from inbuilt speakers.
  • DFM-051 is a tabletop model housed in moulded ABS cabinet. Its sturdy and classic design makes it more reliable and user friendly. This device is very accurate in monitoring Fetal Heart Rate & can be used in Hospitals, clinics or even at homes during regular per-natal checkups.


  • Solid state-portable
  • Ultrasound frequency 2 MHz
  • Earphone & Tape Recording facility available


  • Frequency: 2 MHz
  • Intensity: <10 mW/sq.cm
  • Heart Rate: 60–220 BPM
  • Input: 230V, 50 Hz
  • Mains & Battery operated: (6 Dry Cells Eveready 1050 type)


  • Width: 216mm
  • Height: 95mm
  • Depth: 210mm (With Knob)
  • Weight: 1.9 Kg (With All Accessories)

Obstetrical Applications

  • Detection of early pregnancy and multiple pregnancies.
  • Detects fetal heart at 10-12 weeks.
  • Routine monitoring of fetal health
  • Localization of Placenta.
  • Detects Foetal Distress & Intrauterine Death.

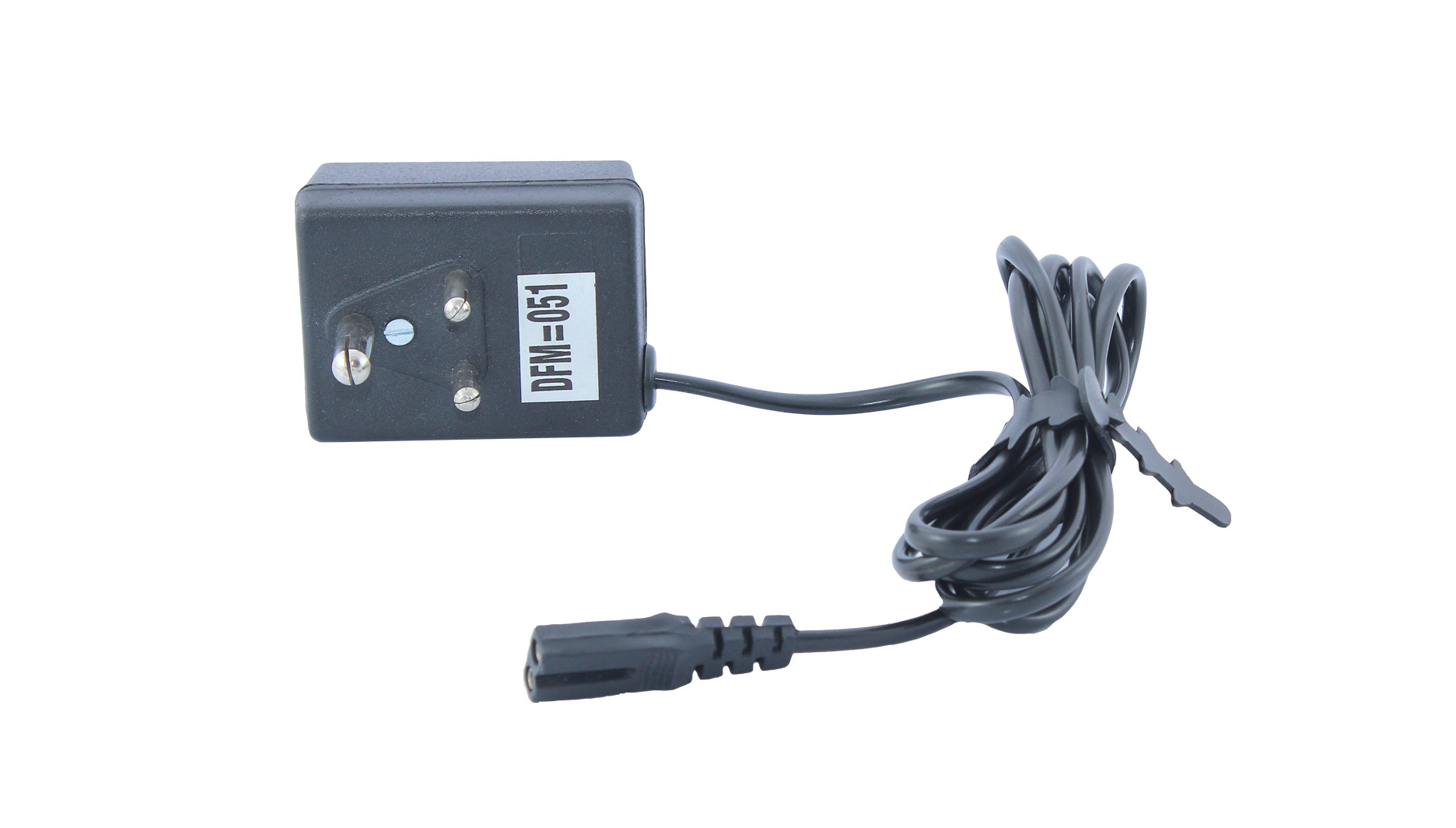

Mains adapter

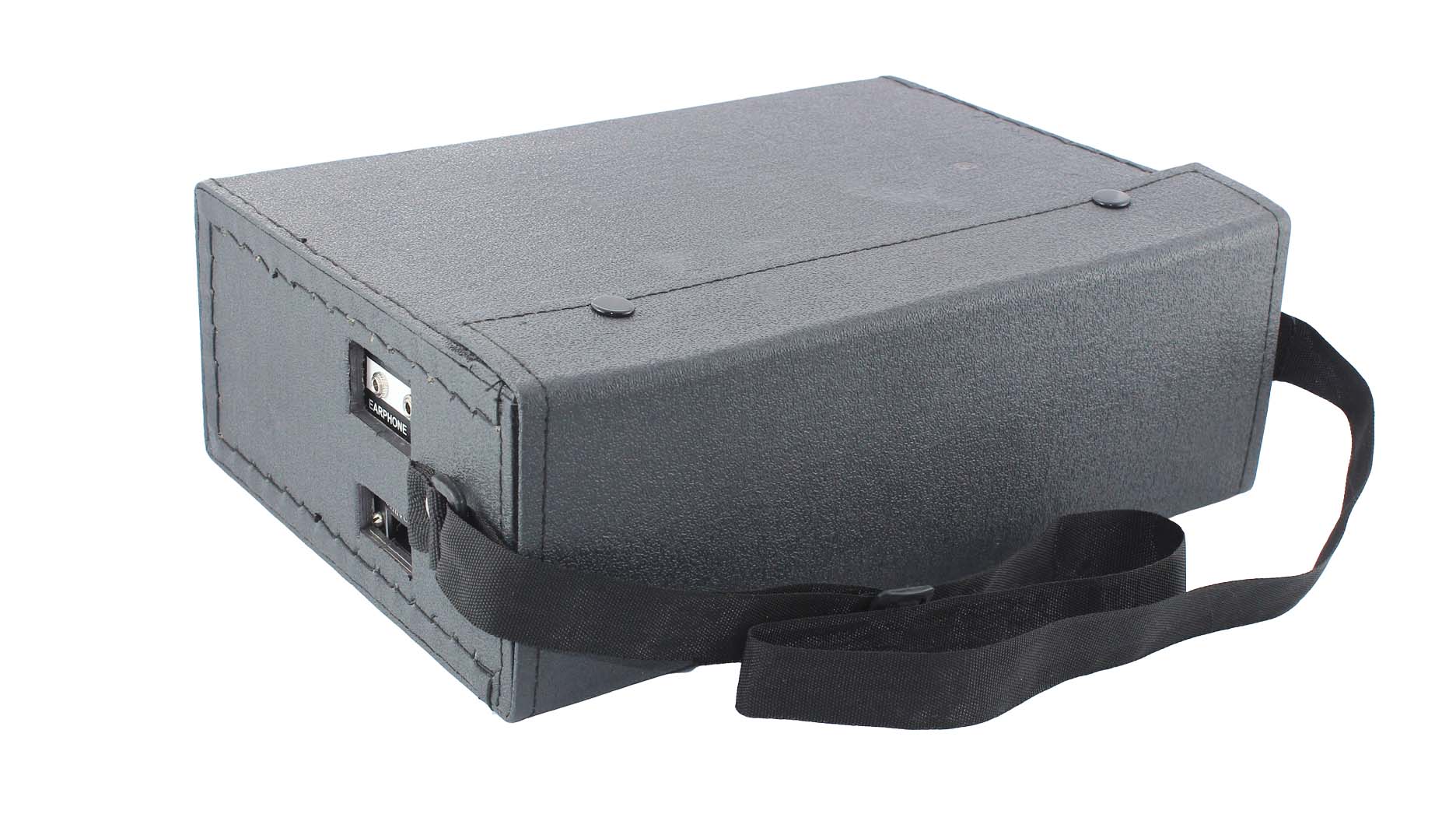

Carrying Case

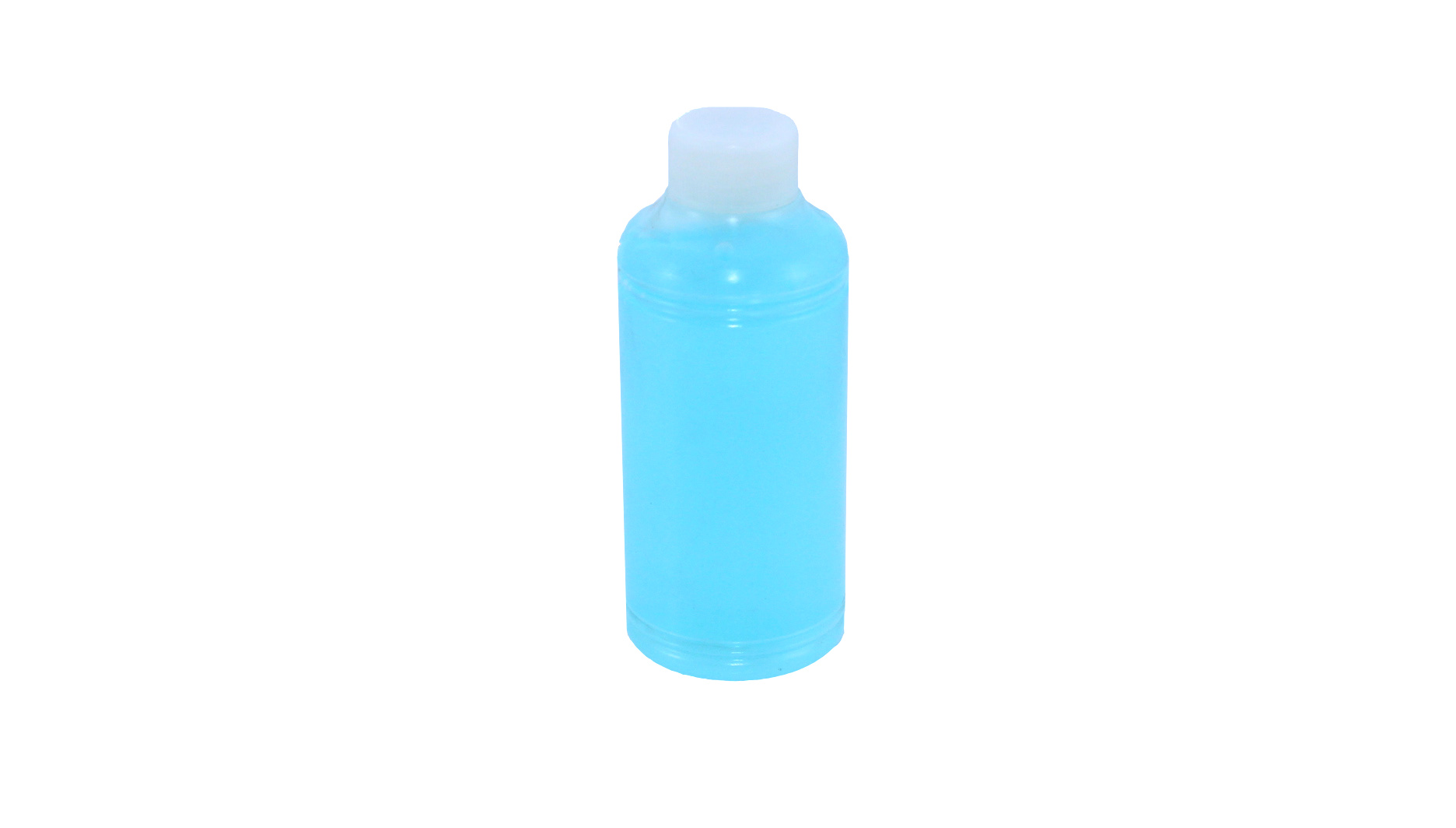

Jelly Bottle
Instruction Manual
