Ultrasound Doppler DFM-210

• Ultrasound Fetal Doppler is used for detection & monitoring of Fetal Heart Rate (FHR) after 12 weeks of pregnancy. Its output is in the audio form i.e. Heart Beats are heard from inbuilt speakers.

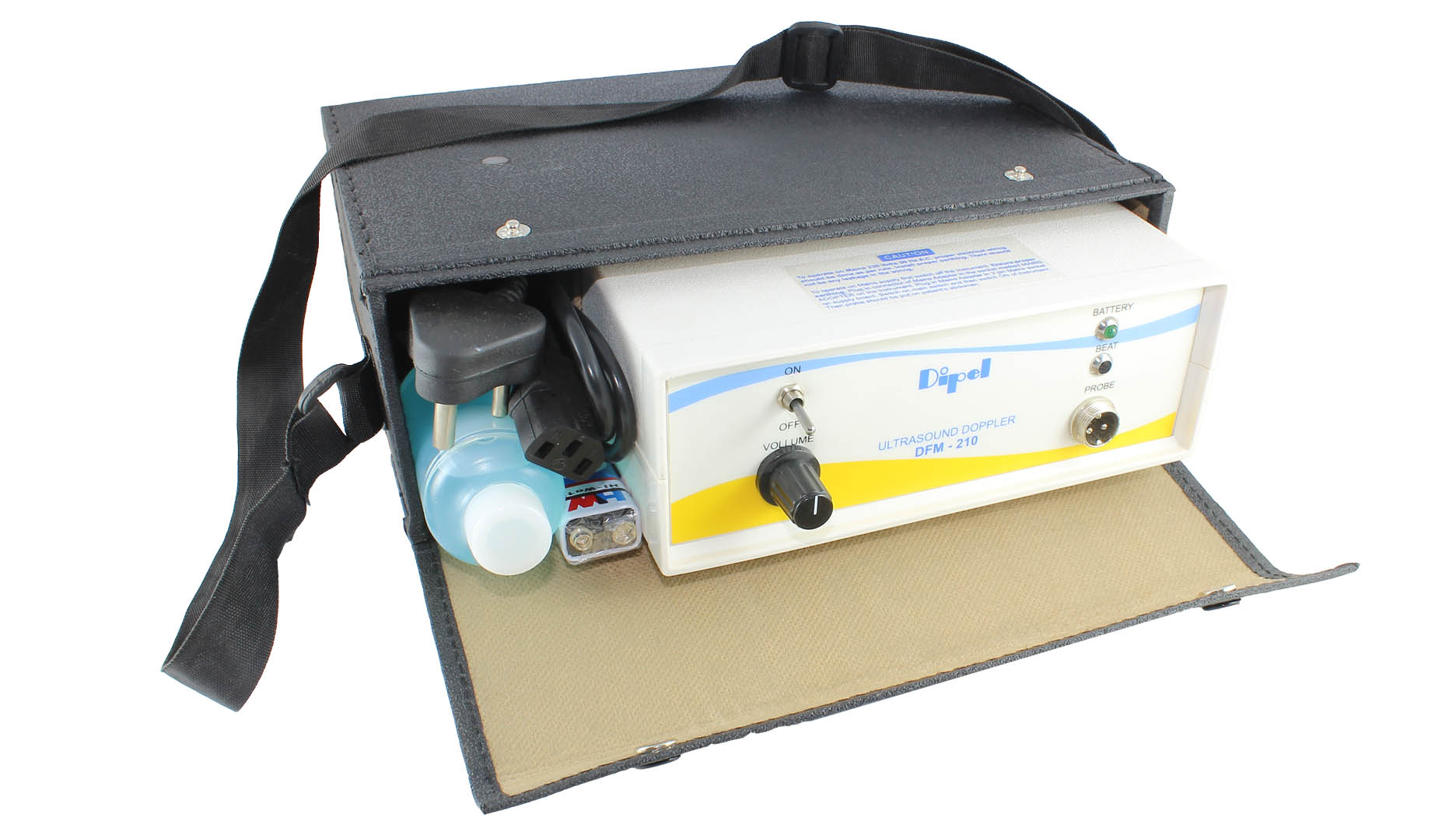

• DFM-210 is a compact model housed in moulded ABS cabinet. It can be operated directly on mains and on 9V DC battery (216-type). Its Compact design makes it easy to handle with maximum performance.

Features

• Solid state-portable
• Ultrasound frequency 2 MHz
• Handy & Small Size, convenient for visiting

Technical

• Frequency: 2 MHz
• Intensity: <10 mW/sq.cm
• Heart Rate: 60–220 BPM
• Input: 230V, 50 Hz

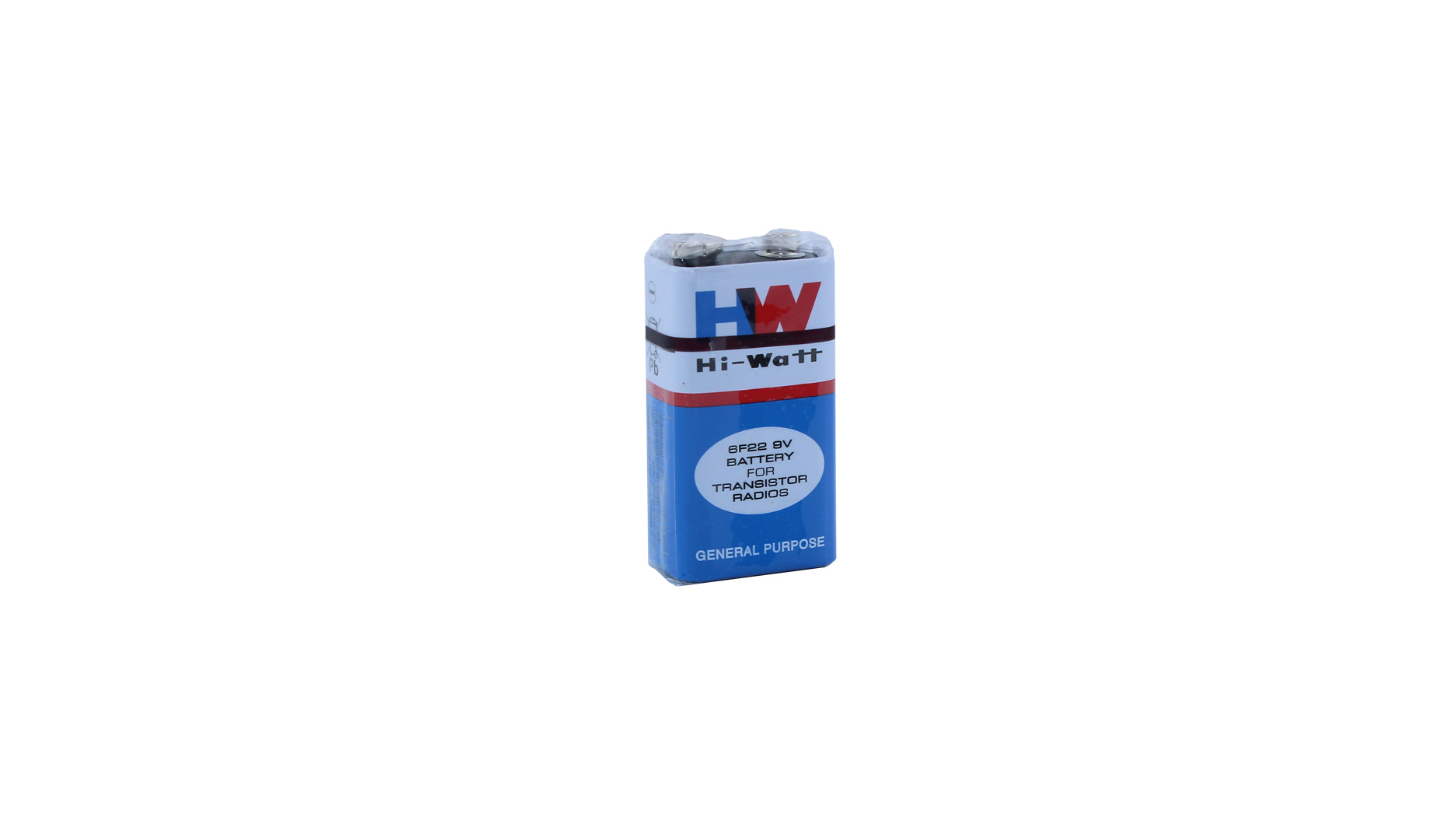

• Mains & Battery operated: (9V DC Eveready 216 type)

Physical

• Width: 200mm
• Height: 83mm
• Depth: 192mm
• Weight: 2 Kg

Obstetrical Applications

• Detection of early pregnancy and multiple pregnancies.
• Detects fetal heart at 10-12 weeks.
• Routine monitoring of fetal health
• Localization of Placenta.
• Under possibilities of missed abortion.
• Precautionary check-ups.
• Evaluates pregnancy Vs abdominal masses.
