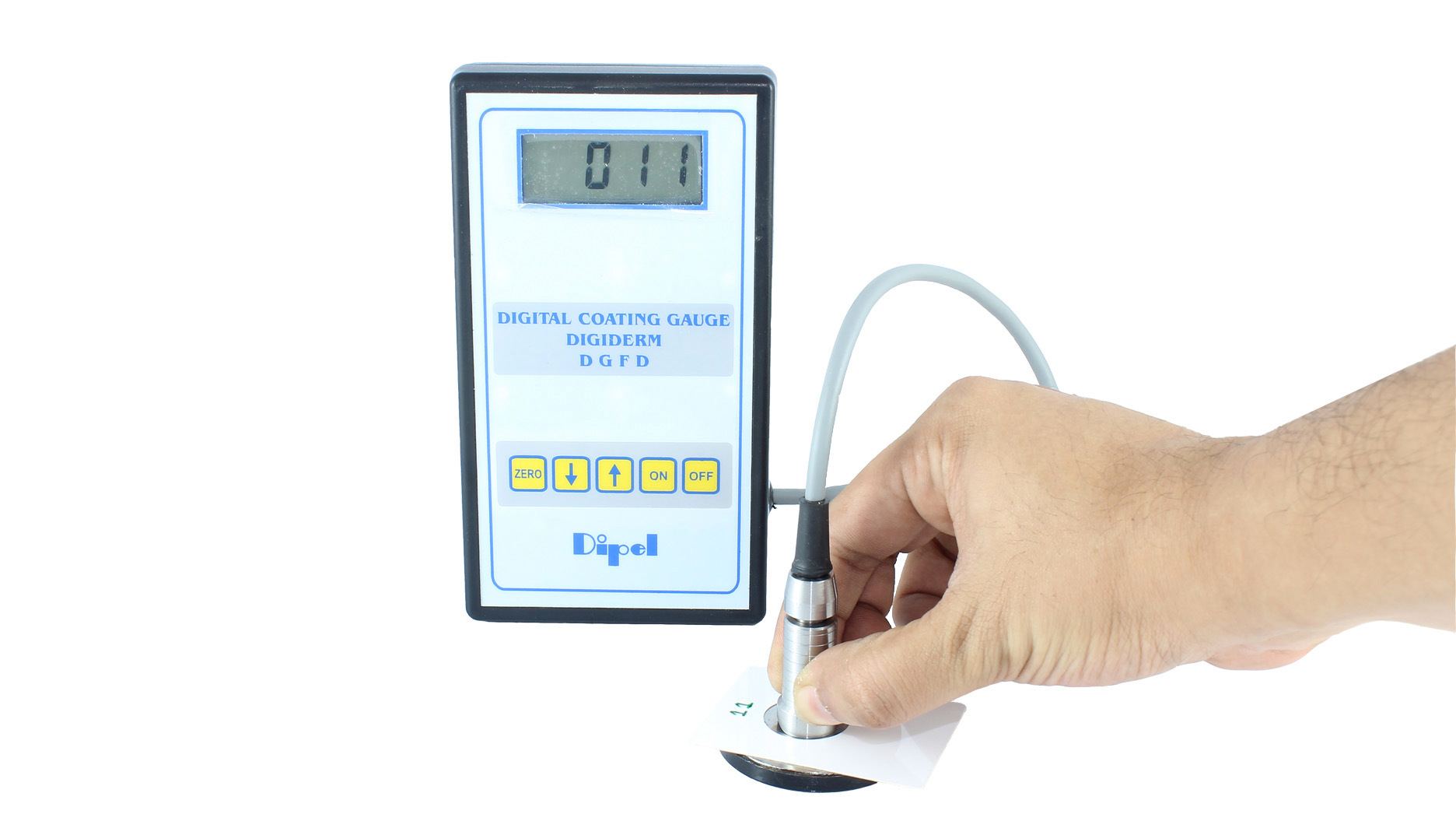

Digital Coating Thickness Gauge – DGFD

Product Code: DGFD

  • Coating Thickness Gauge is an instrument for making accurate nondestructive Measurement of Non-magnetic Coating on Magnetic Metals.
  • It is light in weight, compact and portable. It consumes less power since it incorporates integrated circuits and solid state devices.


  • Measures thickness from one side
  • Eliminates human error
  • Shows instantaneous reading of the measured thickness in Digital form
  • Can be used by unskilled operators
  • Highly reliable due to modern solid state technology
  • Light, Compact, Rugged
  • Optional computer software to display graph on PC using serial port
  • Range: 0 to 999 Microns
  • Resolution: 1 Micron
  • Accuracy: ± 1 for 0-40 Micron
  • ± 3% above 40%
  • Power Supply: 9V DC battery (9V-6F22 Type)
  • Dimension: 127mm x 86mm x 41mm
  • Weight: 350 gms
  • Capable of measuring Non-magnetic Coating of films, plating, lining etc. on magnetic metals
  • Plating - Gold, Copper, Tin, Chromium, Lead, etc.
  • Lining - Resin, Rubber, Glass, etc.
  • Coating - Paint, Resinous Coating, Metal Coating
  • Film - Metal, Resin, Rubber, Paper of any other film of Non-magnetic material can be measured when placed on steel base material

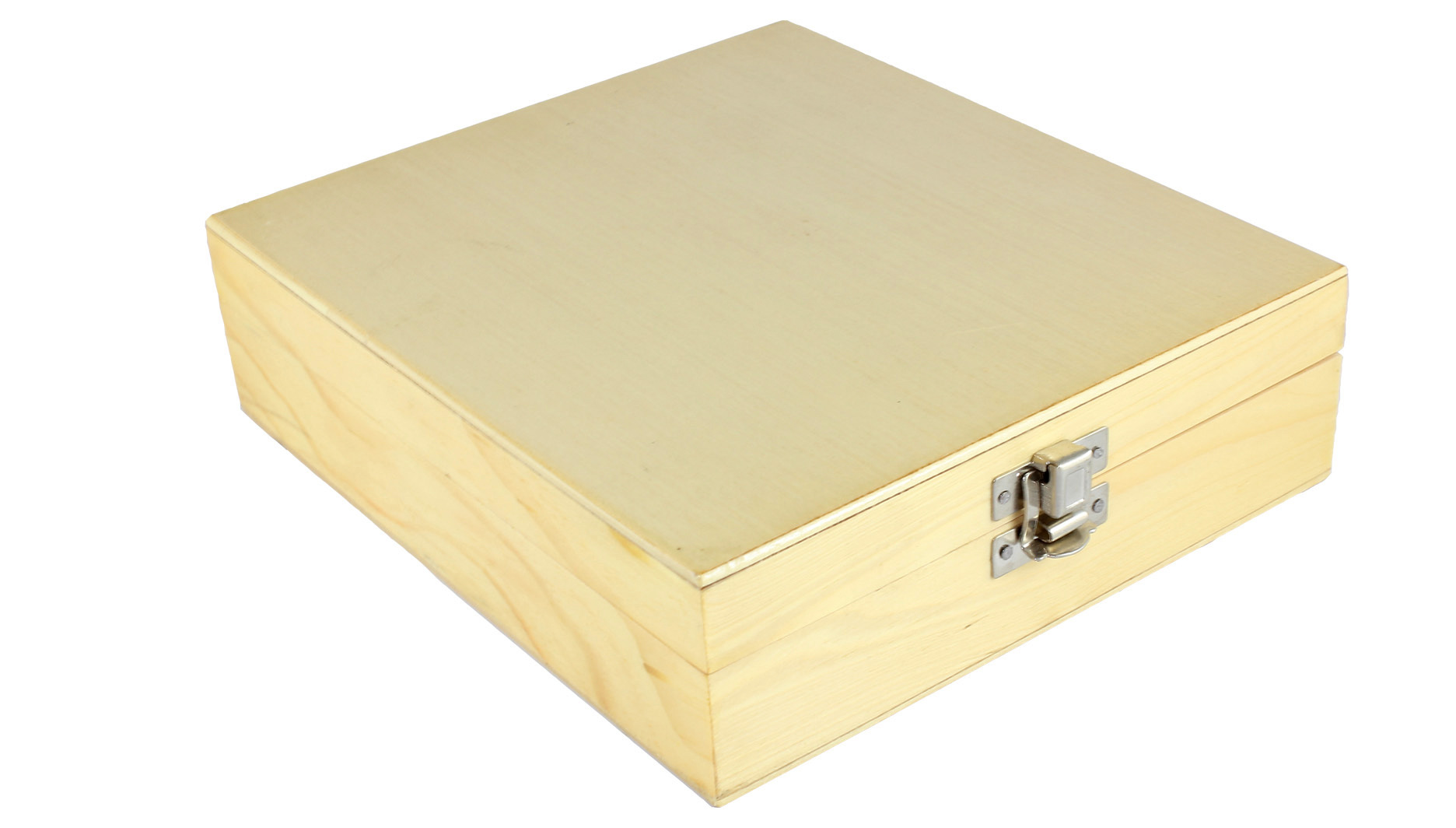

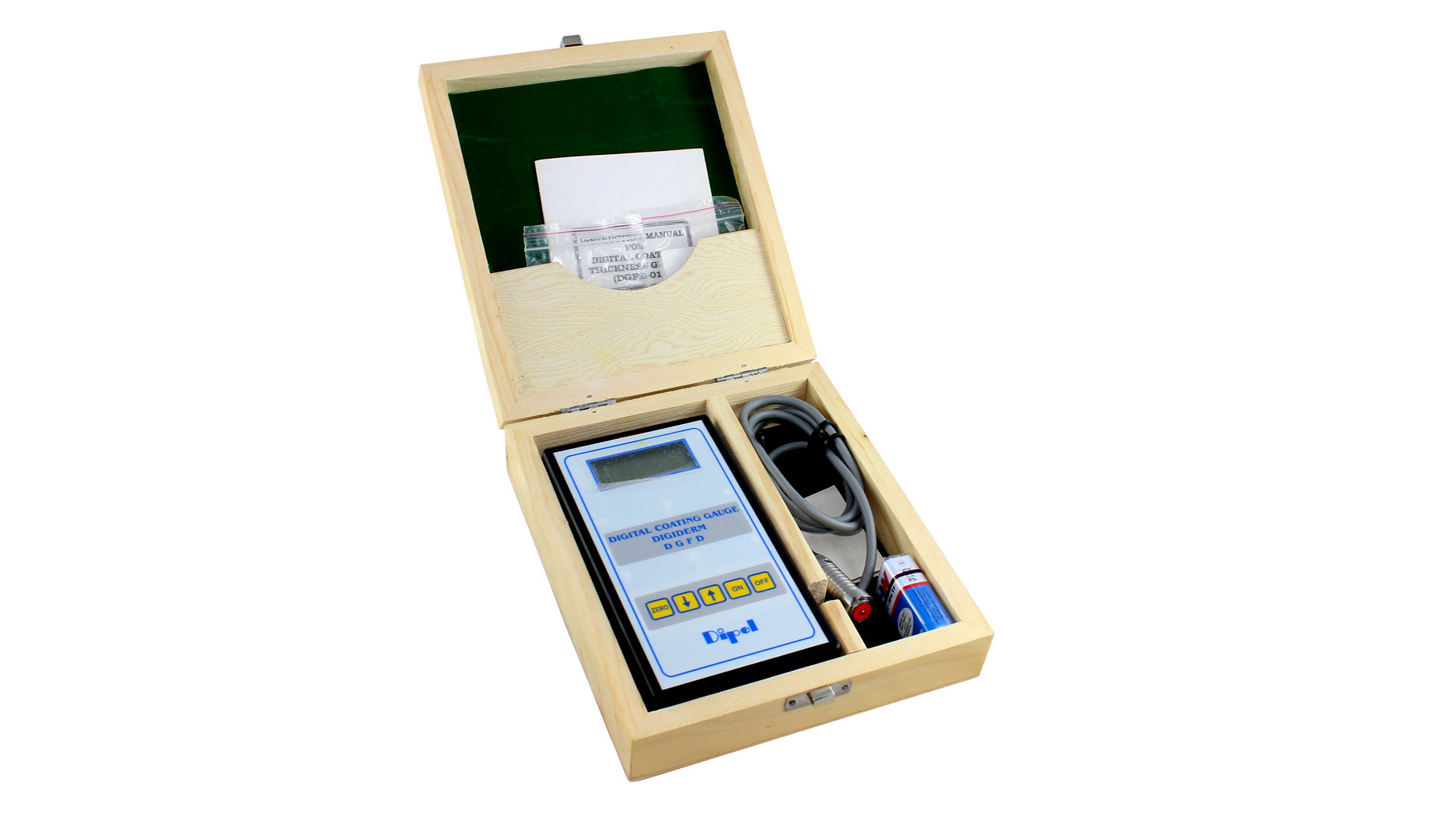

Carrying Case

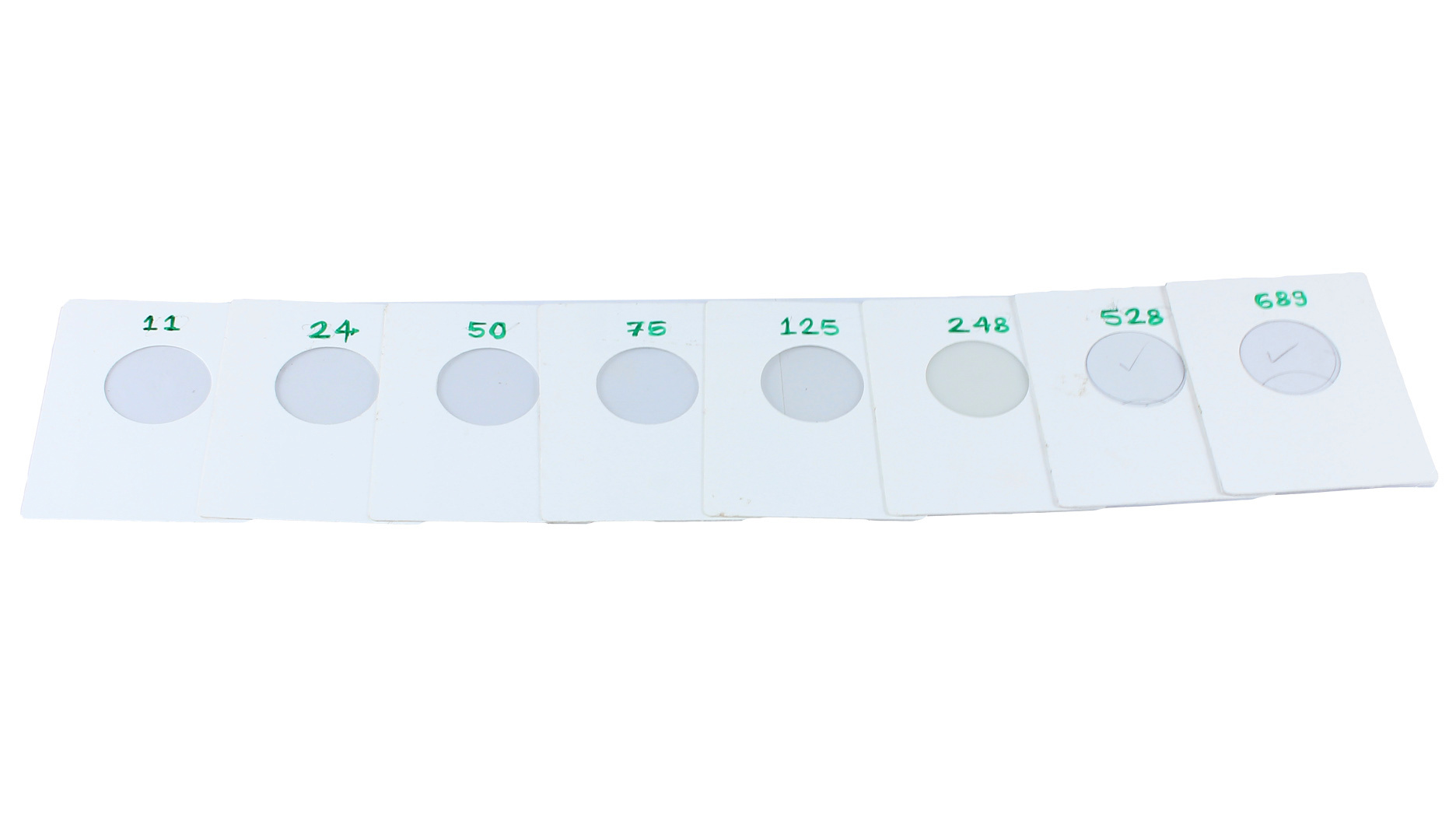

Film Set

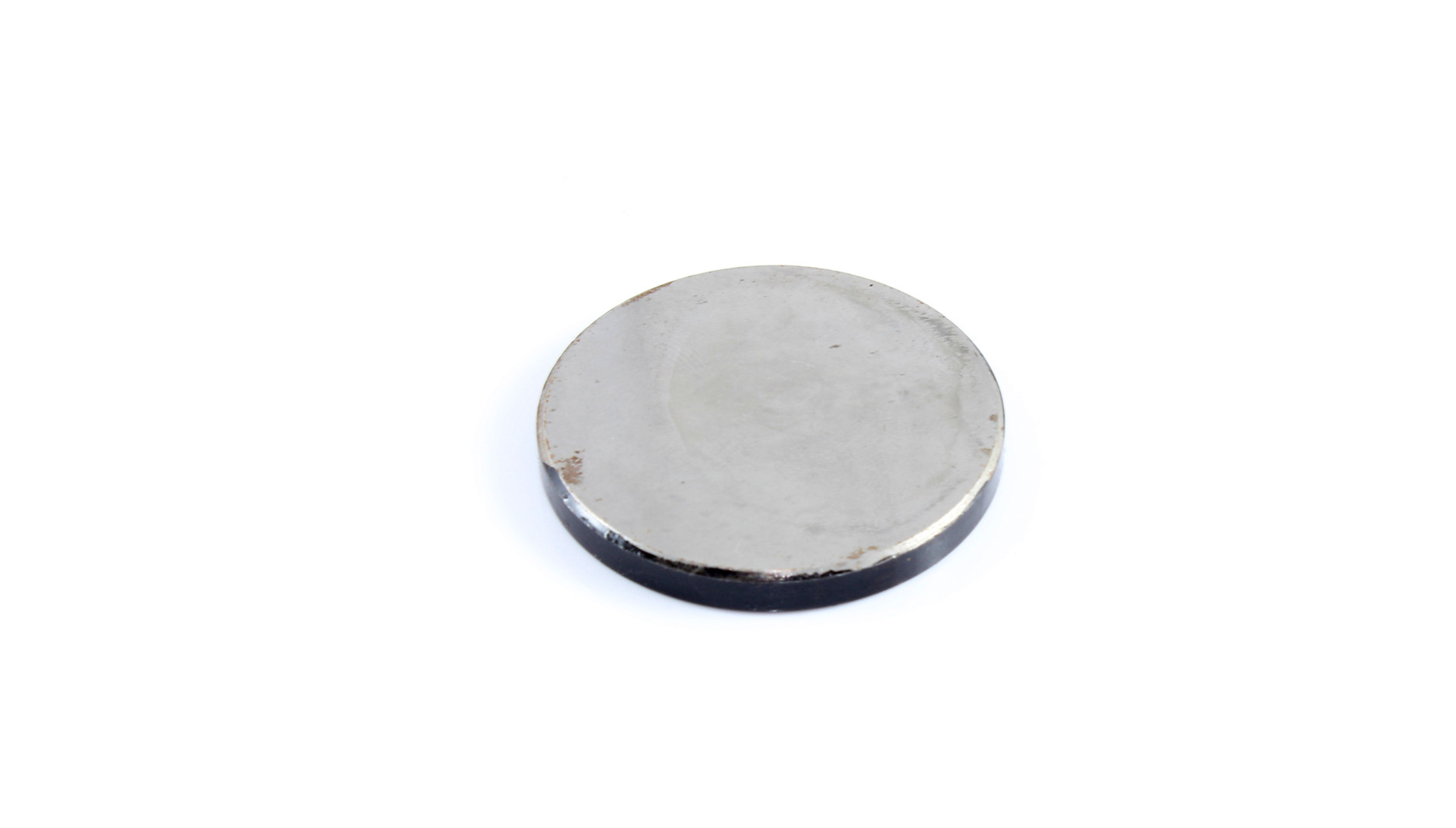

Steel Base Plate
Instructions Manual
