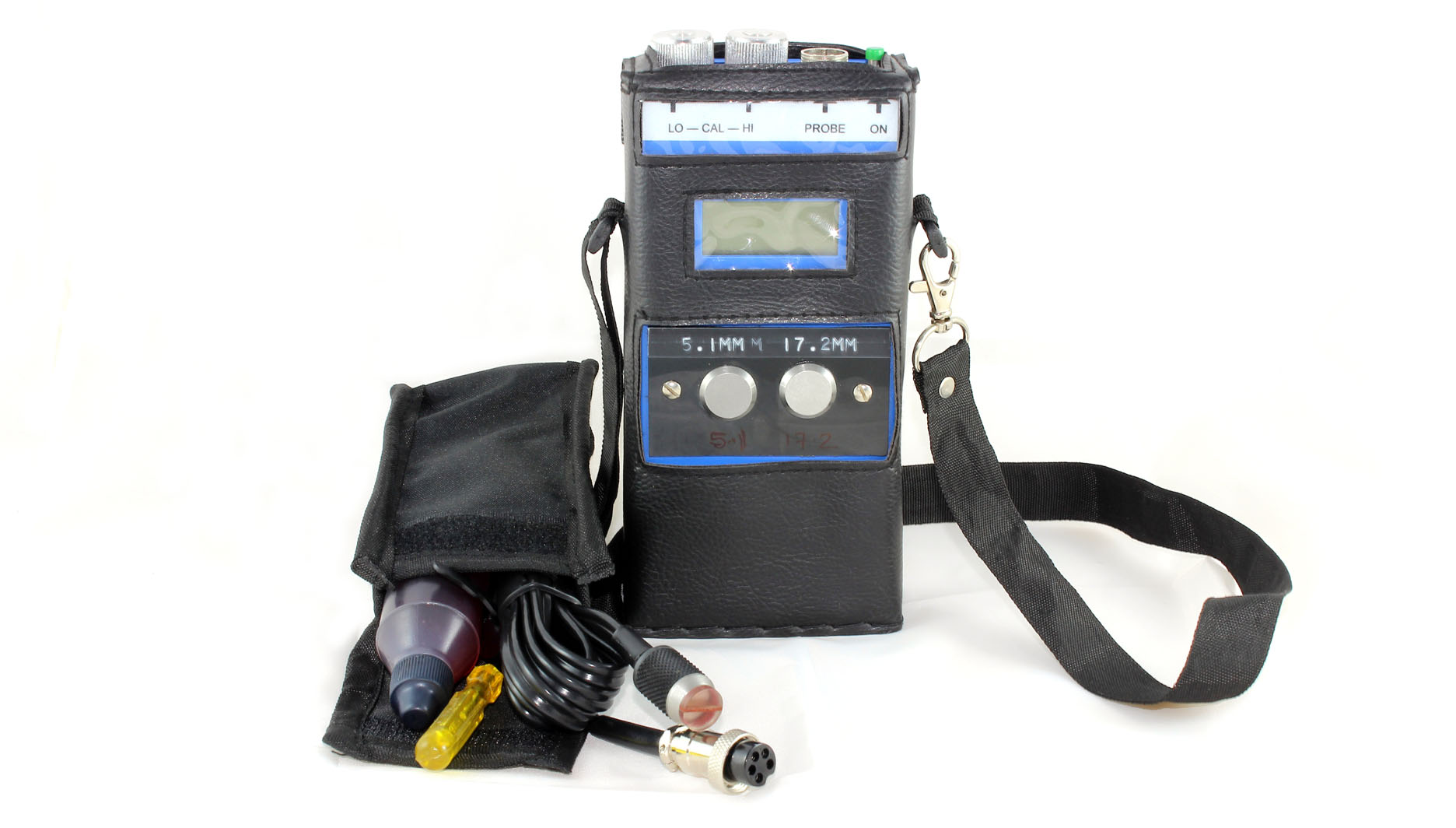

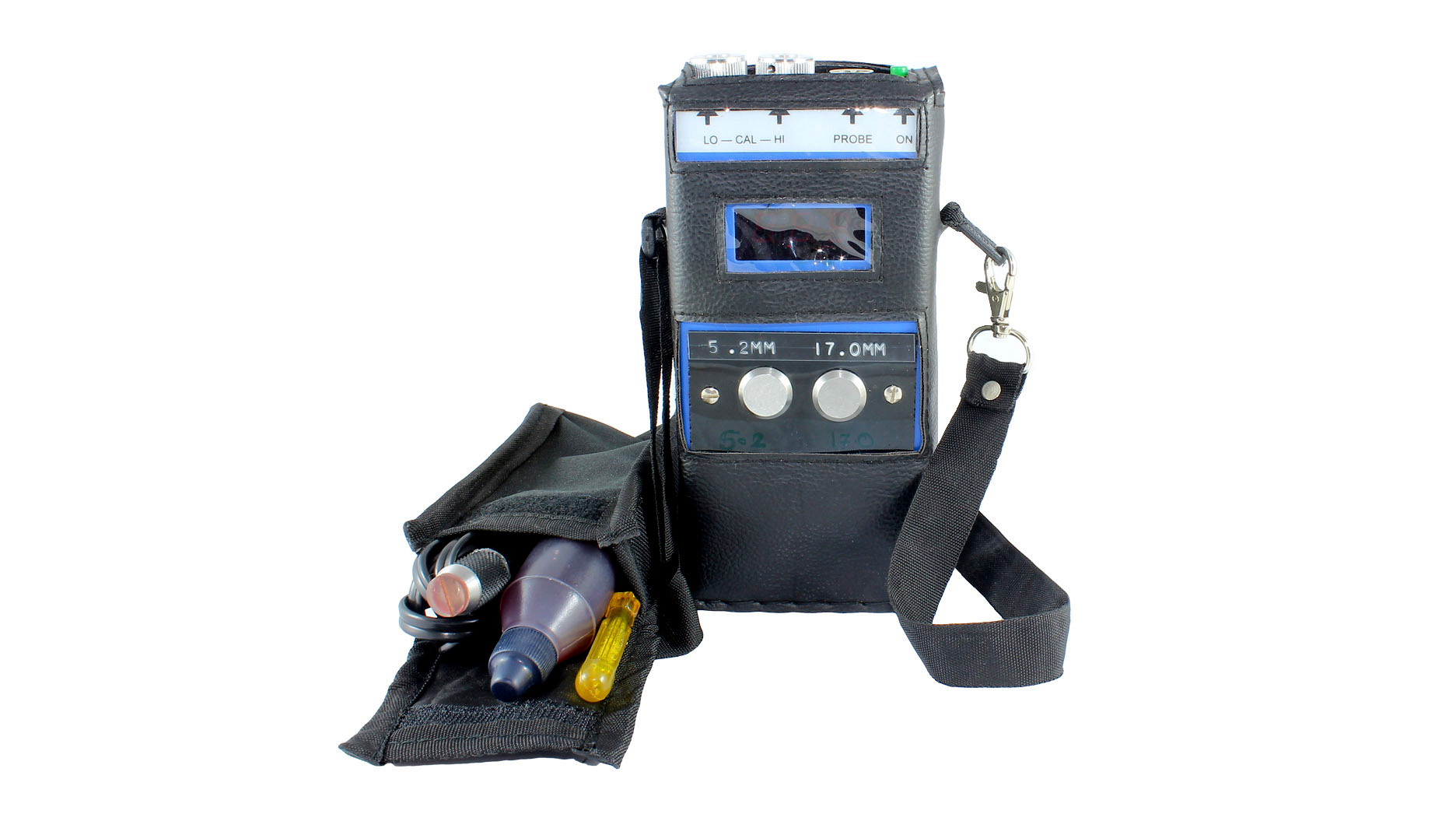

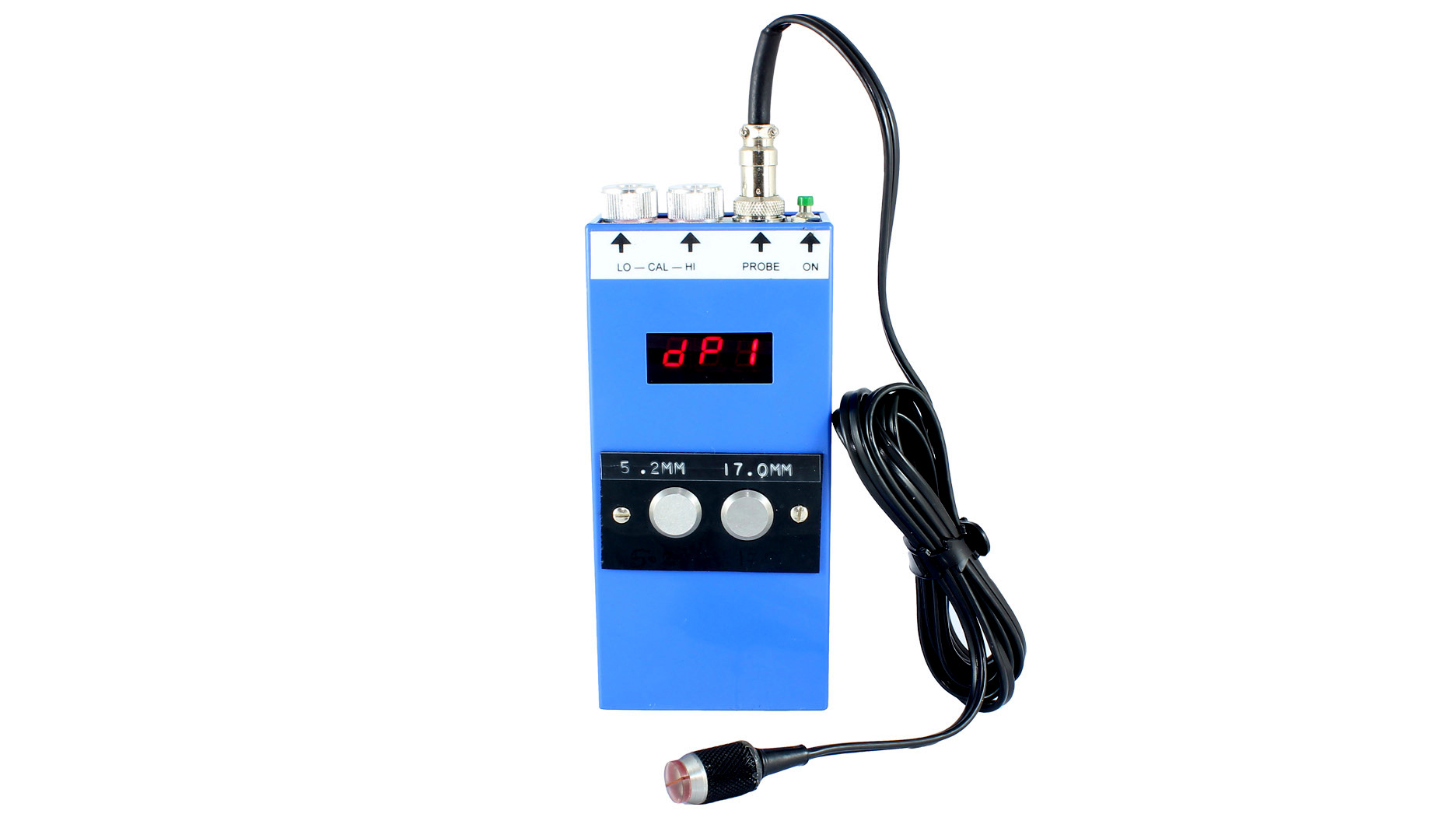

Digital Ultrasonic Thickness Gauge – B2

• Digital Ultrasonic Thickness Gauge is being used in many Professional Companies for measuring thickness where only one side is accessible.
• It employs latest pulse-echo & transducer technologies for quality output.
• It comes with 2 types of displays for different working environments.
• LCD display is being used in areas where light conditions are proper and LED display is used in low light areas.

Features

• Measures thickness from one side
• Eliminates human error
• Shows instantaneous reading of the measured thickness in digital form
• Can be used by unskilled operators
• Highly reliable due to modern solid state technology
• Light, Compact, Rugged

Technical

• Range : 1.5 mm to 60 mm in Steel
• Minimum Thickness Measurement : 1.5 mm in Steel
• Display : LED : Display of 7mm in Height to read in Darkness

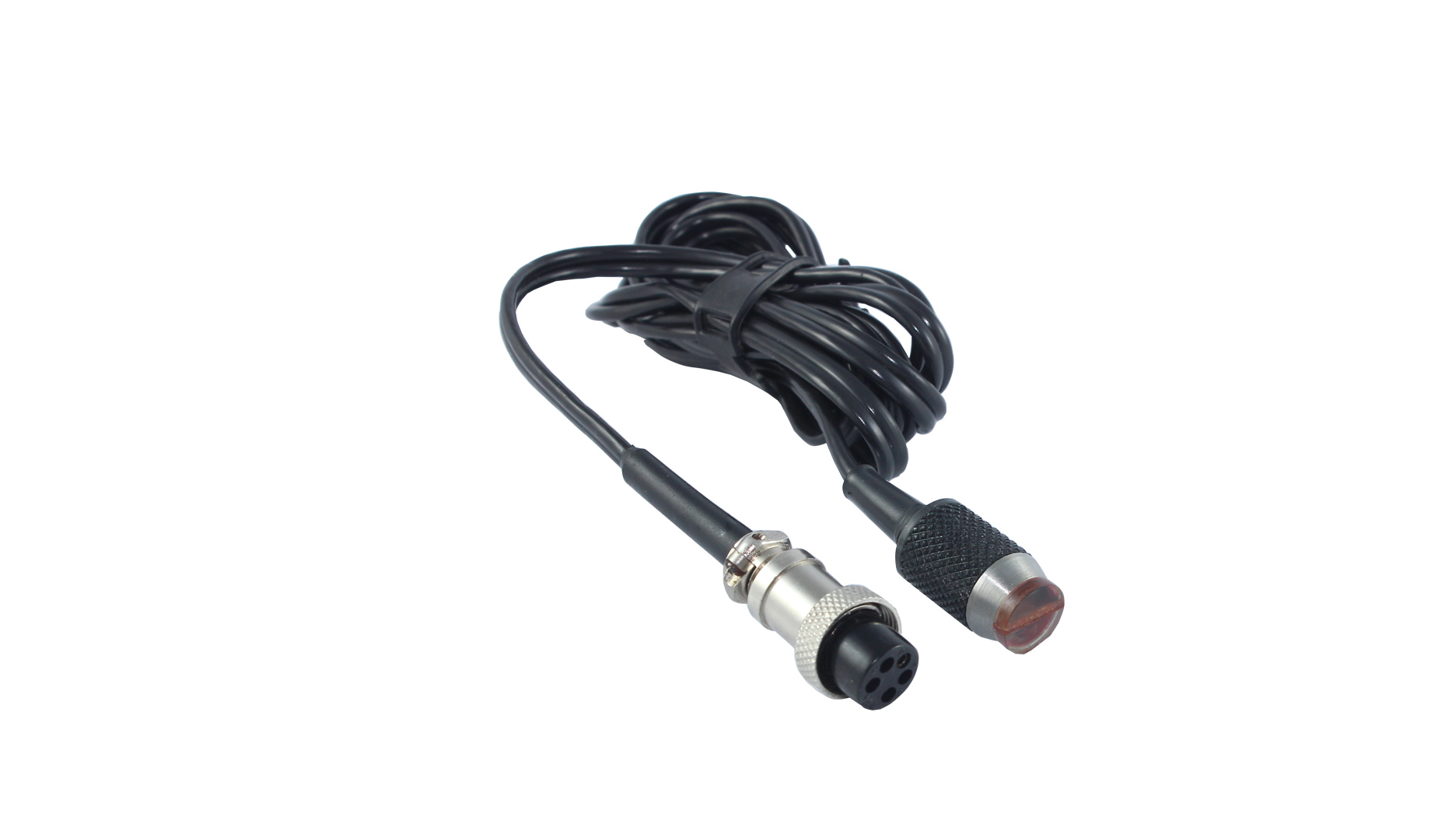

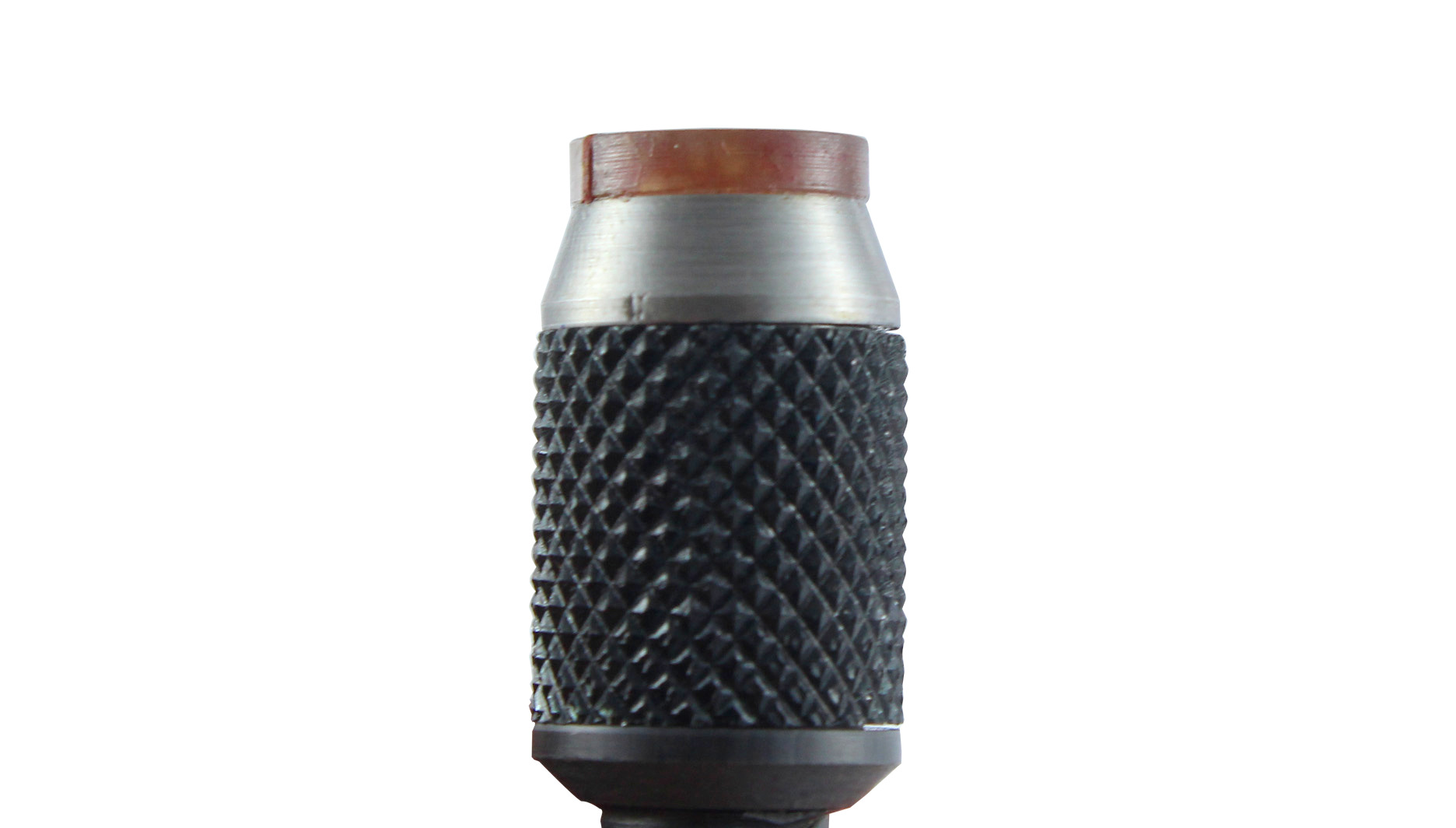

• Probe: PZT Transducer of 2 MHz frequency
• The Probe can withstand up to 80℃

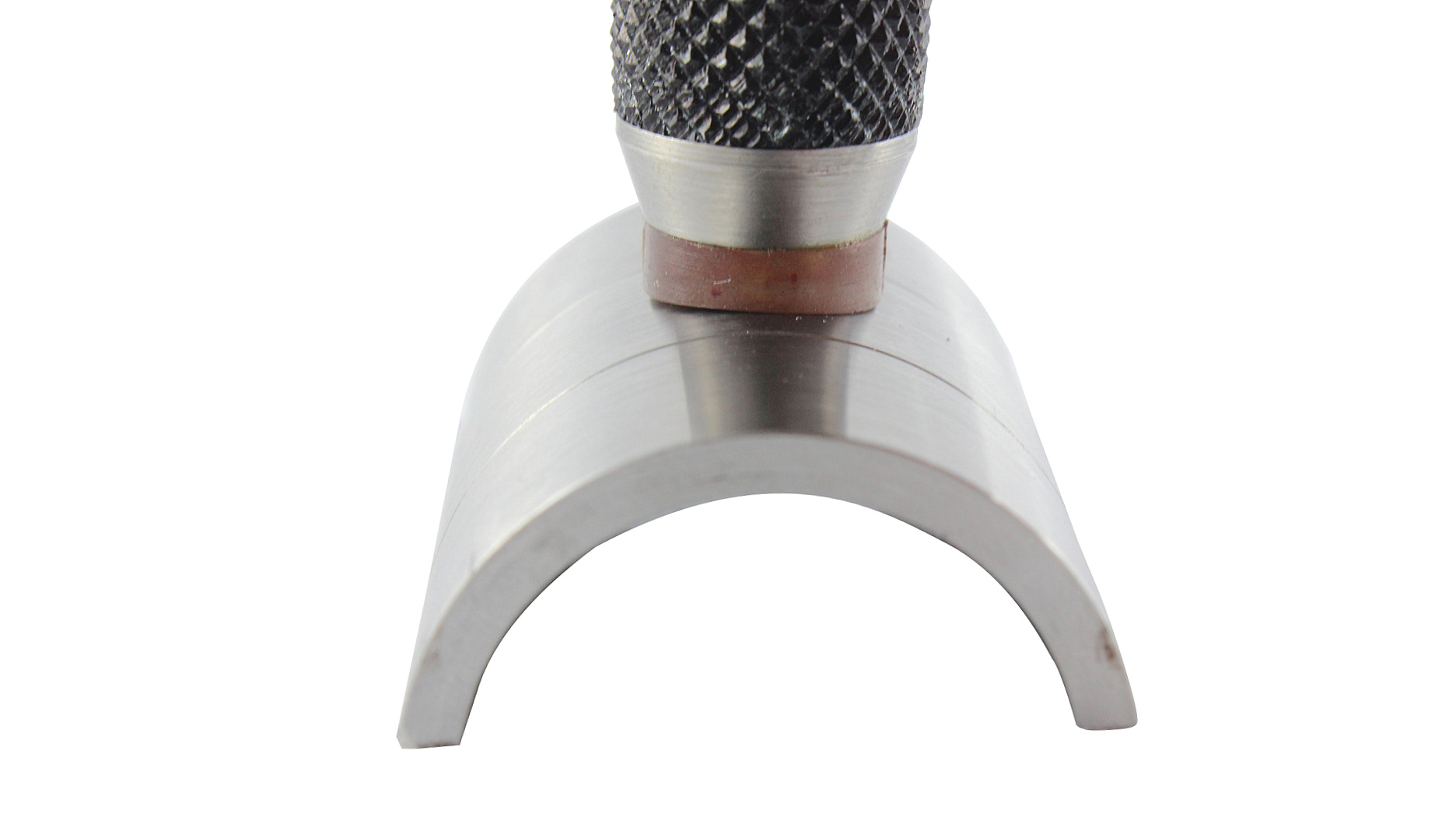

• It can measure on plane surface and pipes of outer diameter greater than 50mm

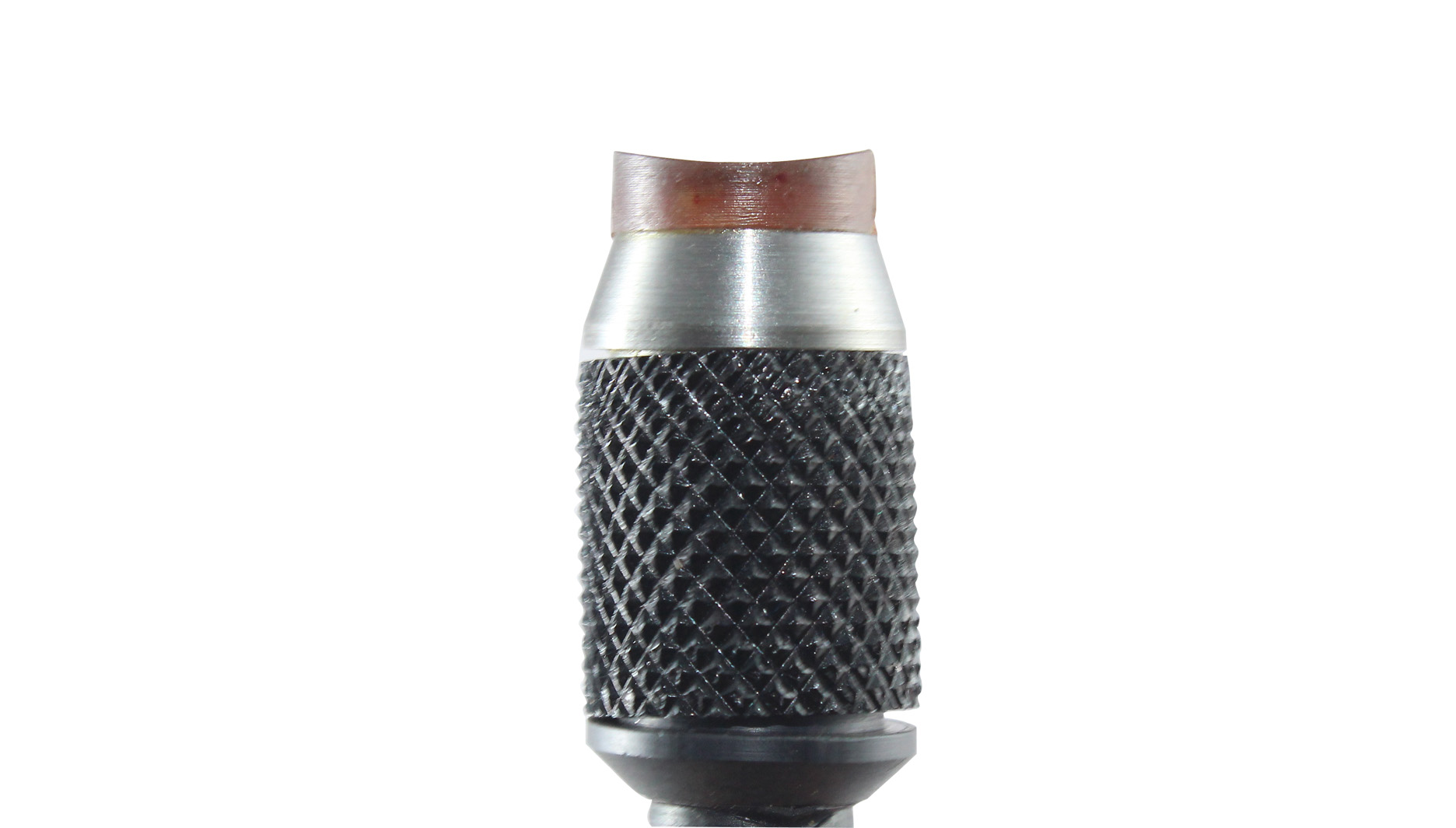

• Special Curvature Probe can be provided to measure on pipes of diameter more than 50mm

Physical

• Dimensions : 187mm x 42mm x 85mm (L x W x B)
• Weight: 1.5 Kg

• Measures Thickness of :
• • Mild Steel (MS)
  • Stainless Steel (SS)
  • Copper
  • Aluminium
  • Lead
  • Tin
  • Alloys
  • Glass
  • Ceramics
  • Polyethylene
  • Plastics etc.
• Useful in Industries like :
• • Chemical Industries
  • Petrochemical Plants
  • Agrochemical Plants
  • Fertilizer Plants
  • Inspectorates of Boilers
  • Fabrication Shops
  • Railways
  • Electricity Boards
  • Refineries
  • Power plants etc.
• Other Applications :
• • Fabrication
  • Quality Control
  • Maintenance
  • Corrosion & Erosion Survey
  • Pipe Lines Storage Tanks
  • Pressure Vessels Turbines
  • Cylinders Ship Hulls
  • Boilers Rolled Sheets
